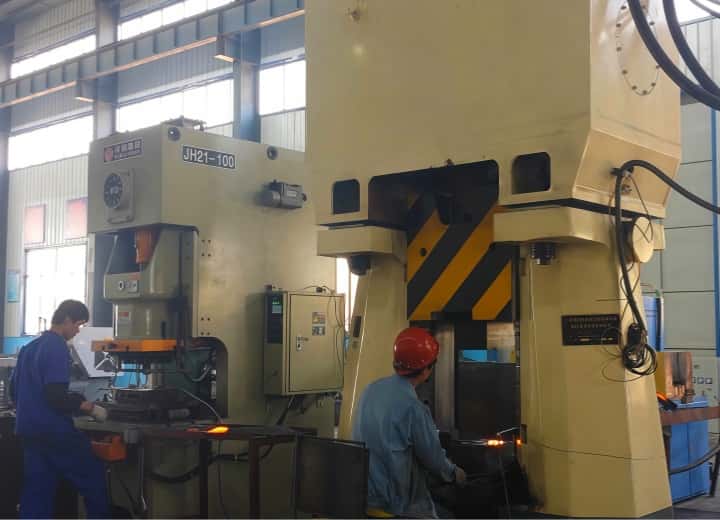

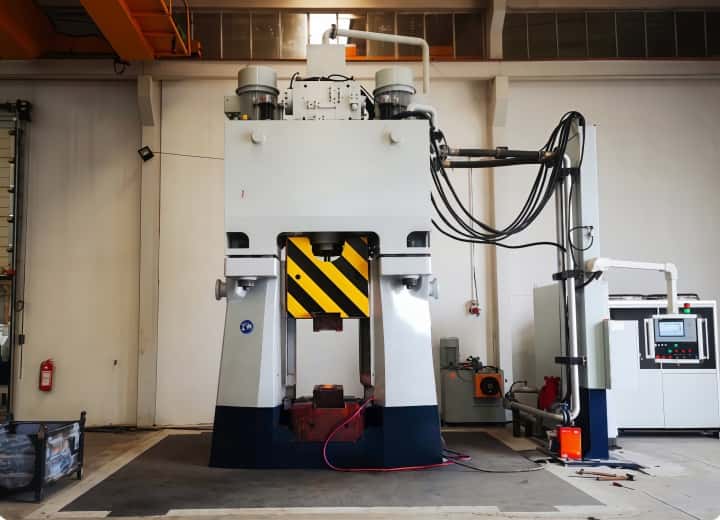

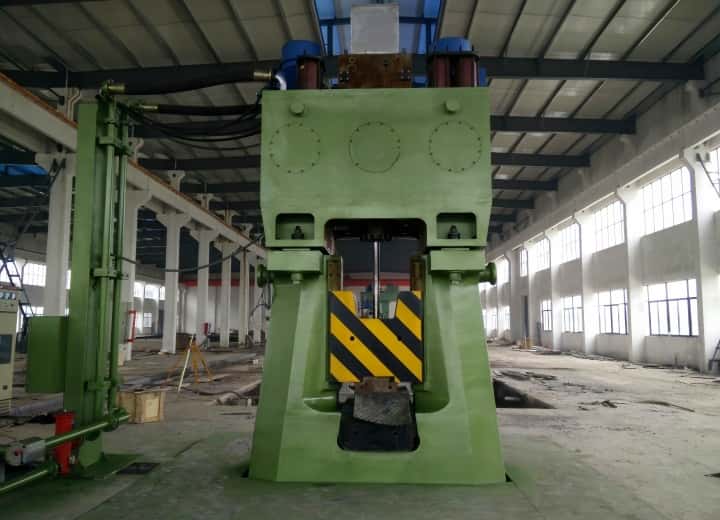

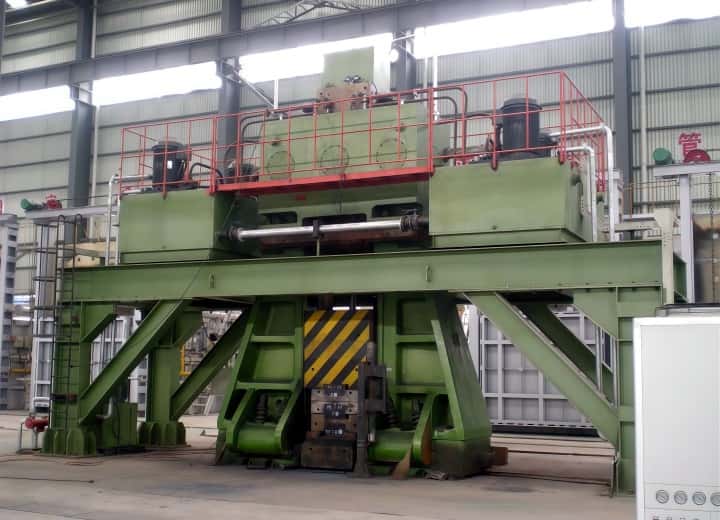

Fully Hydraulic Die Forging Hammer (C92KA 16-625kJ)

Product Features

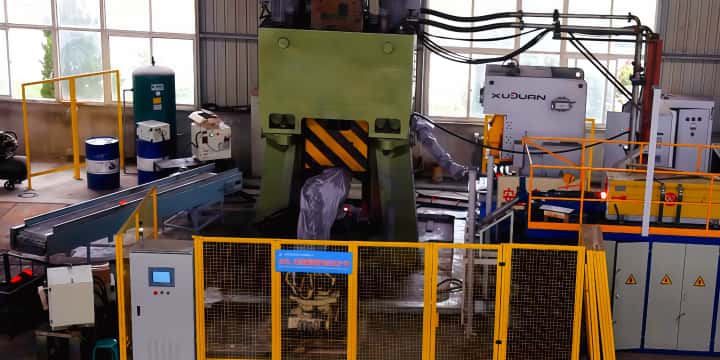

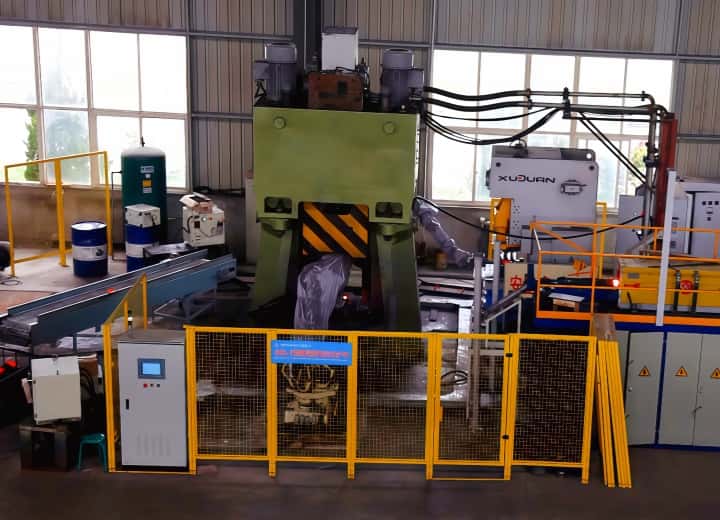

• Introduction to CNC Hydraulic Die Forging Hammer

  The C92KA series of CNC fully hydraulic die forging hammers are suitable for mass production of multiple varieties in precision die forging industries such as automobiles, motorcycles, engineering machinery, hardware tools, and medical equipment. In addition, it is also widely used in high-density special-shaped parts such as the aerospace industry and is the core equipment of automated precision forging production lines.

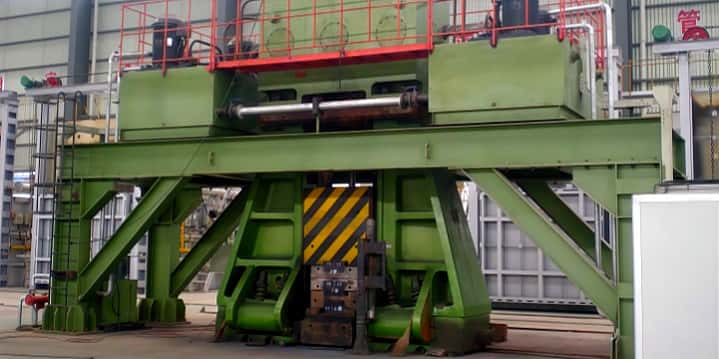

• Key Features of the Fully Hydraulic Die Forging Hammer

  Unique blow valve system/extremely high precision. Ram can be raised and lowered at any time/convenient to replace and adjust dies. CNC programming/convenient process parameter adjustment. Can be automated. High blow frequency/higher production efficiency. U frame + X guide rail/suitable for multi-cavity forging. Short stroke blow, die vibration function, anti-misoperation safety module/unique technology.



• Unique impact valve system, high forging precision

  The impact valve system with slide valve + poppet valve structure makes the impact energy repeatability extremely high. The U-shaped body has high overall strength, the X-rail guide has high precision, strong anti-eccentric load ability, and can be forged with multiple mold cavities.

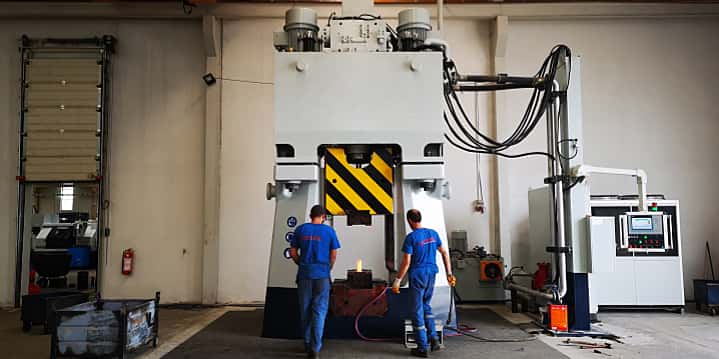

• The frequency of strikes is high and the production is more efficient

  Fully hydraulically driven, with fast return stroke, high strike frequency, and high production efficiency; it also has unique technologies such as short-stroke strike and vibration mode; the hammer head speed is fast, about 5m/s, and the strike energy can be superimposed. If one hammer fails, you can hit multiple hammers. , a small hammer can do big jobs.



• Multiple protection doubles safety

  It has various safety protections such as anti-collision roof buffer, lower seal safety protection, pressure loss protection, anti-misoperation safety module, safety risk alarm, etc., making it safe and worry-free.



• Digital control makes operation more convenient

  It can "digitally control" the striking energy and program, and can also achieve remote control. The hammer head can be slowly raised and lowered at any time, making it more convenient to replace or adjust the mold, with low maintenance costs, easy to use and durable;

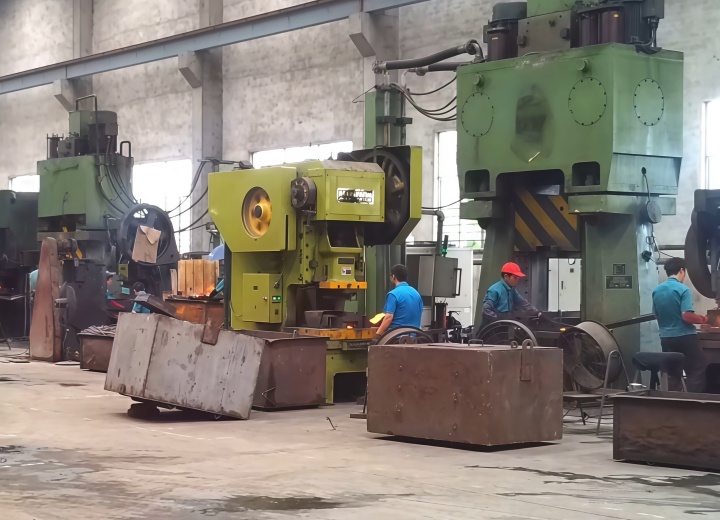

200KJ CNC full hydraulic forging hammer forging blade video

Product parameters
