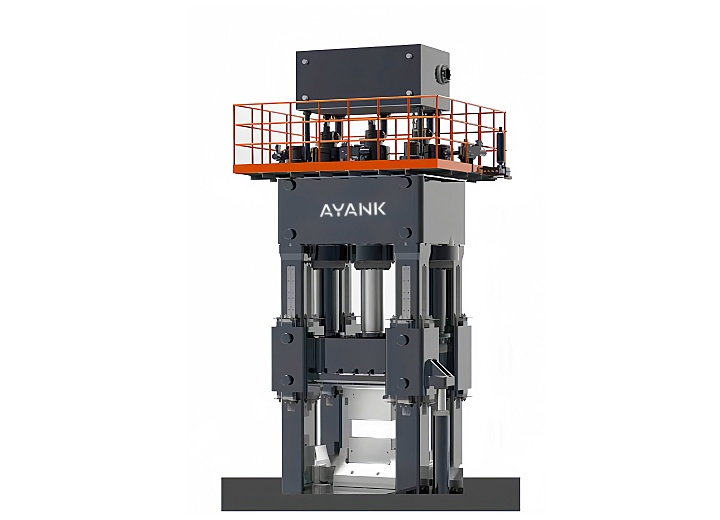

Fast Open-Die Forging Hydraulic Press (Y13KA 800-5000T)
Fast Open-Die Forging Hydraulic Press (Y13KA 800-5000T)
Fast Open-Die Forging Hydraulic Press (Y13KA 800-5000T)

Fast Open-Die Forging Hydraulic Press (Y13KA 800-5000T)

✅High Forging Frequency, Increased Productivity​

The Fast Open-Die Forging Hydraulic Press s uses a high-response servo pump control system, achieving a forging frequency of 90–110 strokes per minute.

✅Strong Eccentric Load Resistance, Excellent Repeatability​

With a pre-stressed frame or four-column eight-guide rail structure, the press maintains stable ram movement even under heavy off-center loads, ensuring repeatable accuracy.

✅Easy Operation, Intelligent Control​

Equipped with a full digital touchscreen HMI, the press supports one-key parameter recall, real-time pressure/displacement monitoring, and automatic data logging.

✅Energy Saving, Enhanced Safety​

Driven by a servo motor with accumulator assistance, the press supplies power on demand with no overflow loss, saving 30–50% energy compared to conventional hydraulic presses.
Send Email Inquiry Now

Product Features

  • Introduction to Y13KA Fast Forging Hydraulic Press

    The Y13K series Fast Open-Die Forging Hydraulic Press adopts an advanced control system and detection devices, enabling various operating modes such as fully automatic, semi-automatic, manual, and linkage. Mode switching is simple, operation is convenient, and it comes with complete auxiliary equipment. It can perform various free forging processes, including upsetting, drawing out, punching, expanding rings, twisting, bending, offsetting, and cutting. Compared with traditional free forging equipment, it offers advantages such as high forging frequency, high production efficiency, high precision, energy saving, environmental protection, and a high degree of automation.

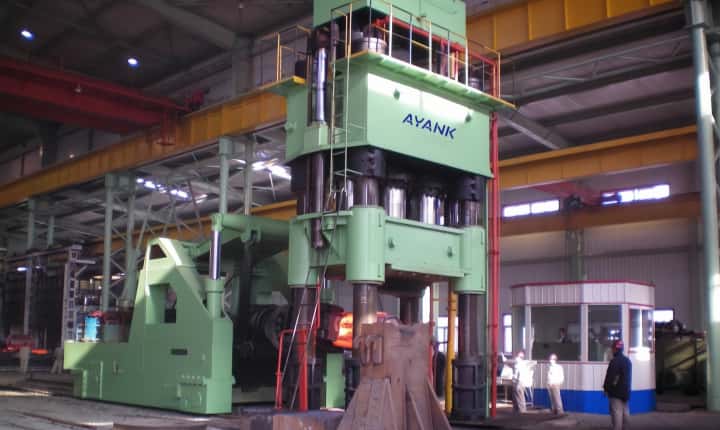

    Introduction to Y13KA Fast Forging Hydraulic Press

Product parameters

Item Unit Y13KA-800 Y13KA-1250 Y13KA-1600 Y13KA-2000 Y13KA-2500 Y13KA-3150 Y13KA-4000 Y13KA-5000
Nominal Force (Graded) MN 8 12.5 2006/9/16 2008/11/20 8/16/25 10/20/31.5 16/24/40 20/30/50
Max. Daylight Opening mm 2250 2600 2900 3100 3700 3900 4200 4600
Max. Working Stroke mm 1000 1250 1400 1500 1600 1800 2000 2200
Distance Between Columns mm 2200X1200 2200X1400 2600X1400 2800X1500 3200X1700 3800X1900 4500X2200 4900X2300
Moving Table Size mm 2500X1400 3200X1500 3500X1600 3700X1700 5000X1900 5000X2300 6000X2400 6000X2800
Moving Table Stroke mm 1500 (L/R) 1500 (L/R) 1600 (L/R) 1800 (L/R) 2000 (L/R) 2500 (L/R) 2500 (L/R) 3000 (L/R)
Lateral Tilt Table Stroke mm 2000 2600 2900 3200 3600 4200 4600 5200
Forging Speed mm/s 0~90 0~95 0~90 0~90 0~85 0~105 0~90 0~90
Moving Table Speed (Adj.) mm/s 0~250 0~250 0~250 0~250 0~150 0~150 0~150 0~150
Lateral Tilt Table Speed (Adj.) mm/s 0~250 0~250 0~250 0~250 0~150 0~150 0~100 0~100
Fast Forging Frequency (Stroke ≤20mm) times/min ≤100 ≤80 ≤80 ≤80 ≤70 ≤90 ≤90 ≤90
Forging Control Accuracy mm ±1 ±1 ±1 ±1 ±1 ±1 ±1 ≤90
Installed Power kW ~800 ~1300 ~1580 ~1900 ~2300 ~3500 ~3800 ~4600

*Note:Above parameters are standard parameters and no announce if there are any changes.

Application Industries

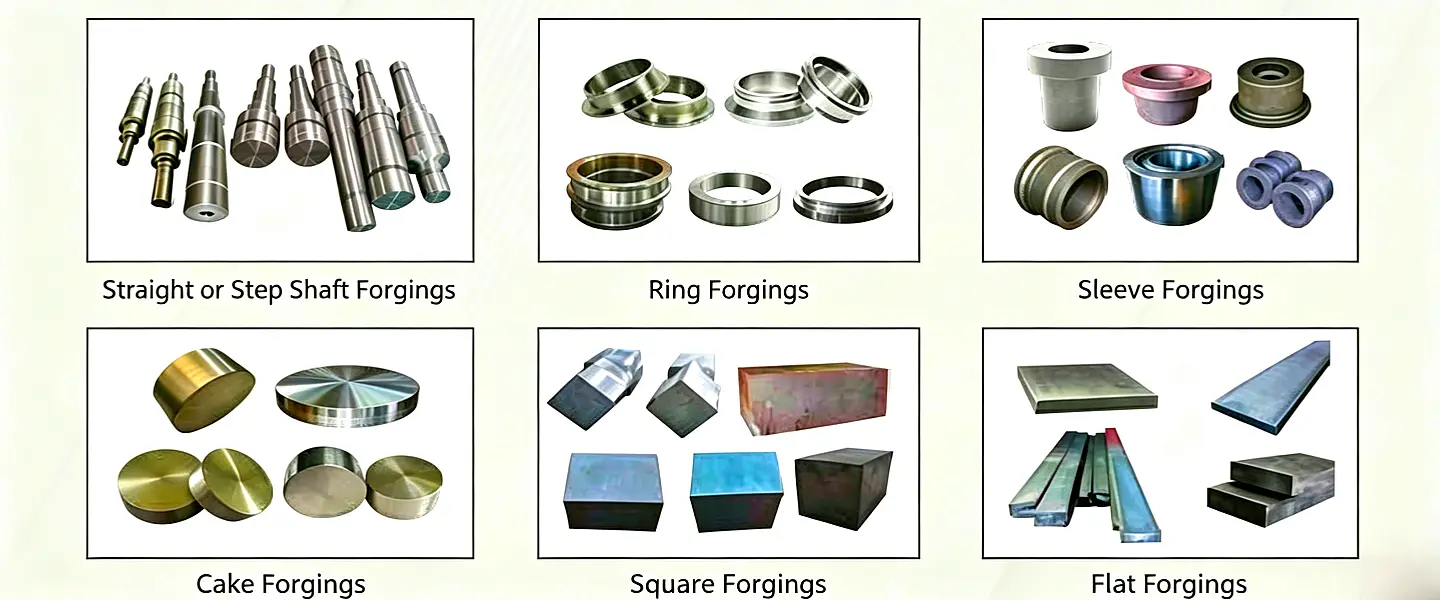

Forging Types

Related Case

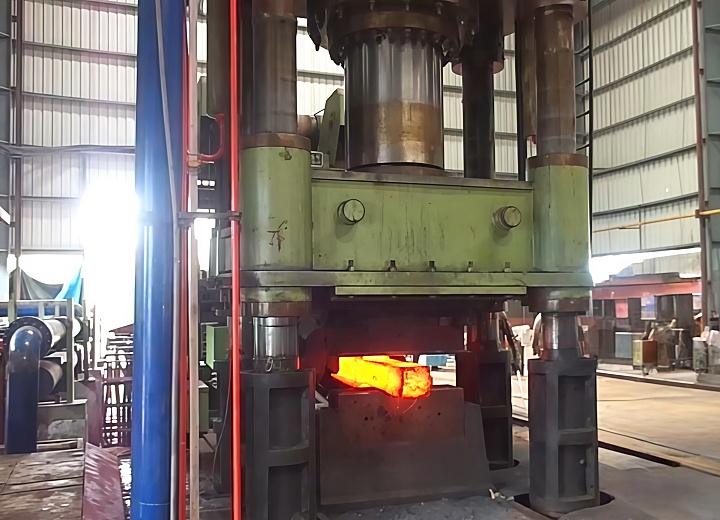

video
