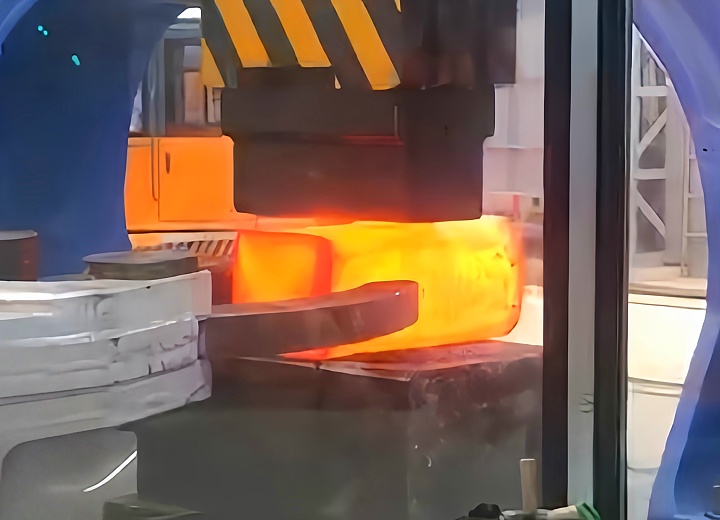

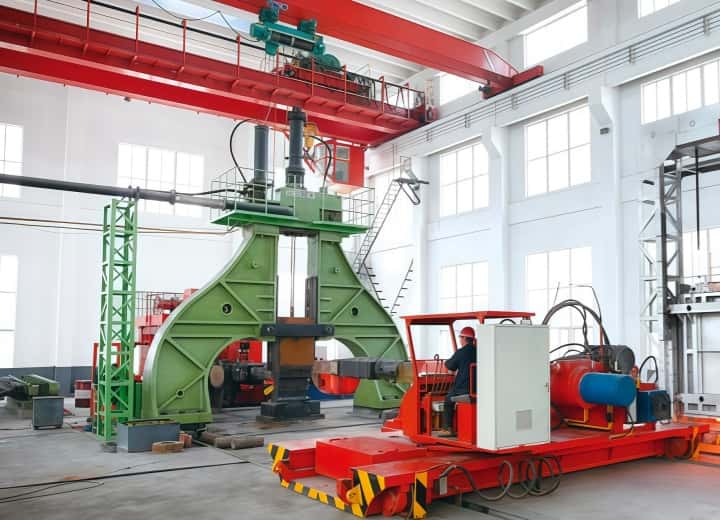

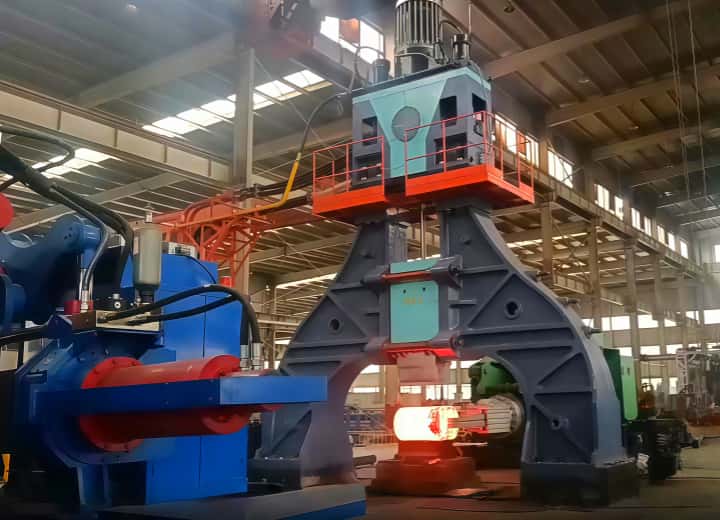

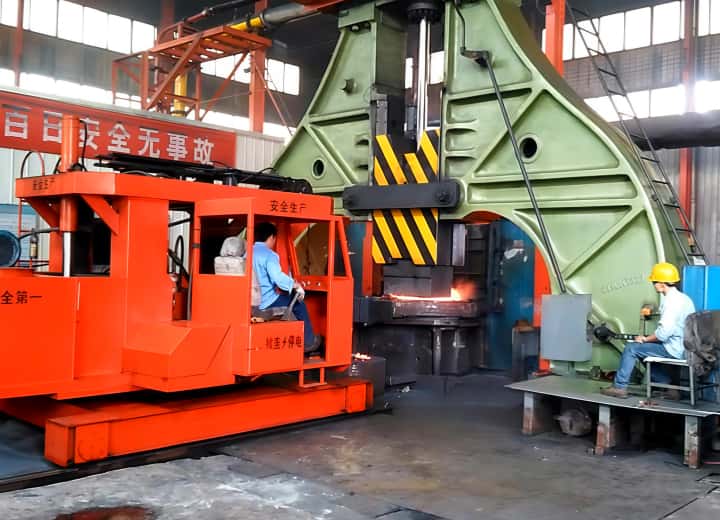

Full Hydraulic Open Die Forging Hammer (C66YA 35-875kJ)

Product Features

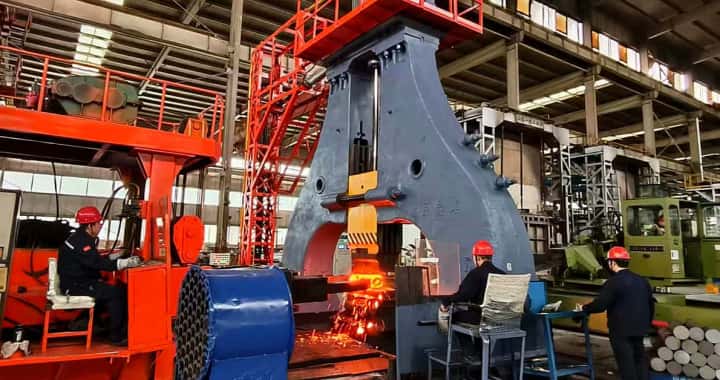

• Introduction to Fully Hydraulic Free Forging Hammer

  C66YA Series Fully Hydraulic Open Die Forging Hammer adopting an all-hydraulic drive system, this forging hammer delivers rapid striking and return speeds for enhanced production efficiency. Its flexible and easily controllable operation enables hammer suspension at any position, making it suitable for diverse free forging processes. Widely applied in manufacturing various types of free forgings, it is the preferred equipment for medium-to-large forgings and high-temperature alloy forgings.

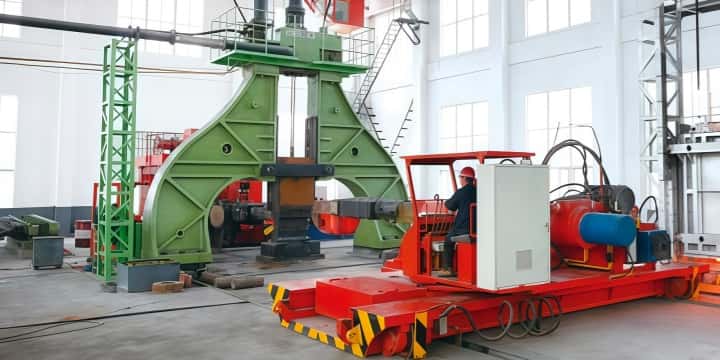

• Features of the Double-Arm Open-Type Hydraulic Hammer

  Fully hydraulic drive system/improves piston life Slide valve + conical valve structure/excellent system pressure maintain X guide rail structure/improves piston rod life Differential servo principle/flexible operation and easy control Improve return speed and blow frequency/high production efficiency Suitable for large and medium-sized free forgings/high cost-effective

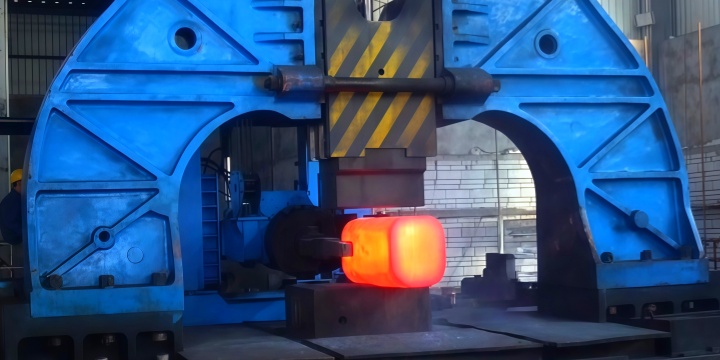

• Powerful Striking Energy

  The unique striking valve system ensures precise energy control and exceptional repeatability.



• High Production Efficiency

  With hydraulically driven striking and return strokes, the system features low backpressure in the upper chamber during return, eliminates muffled-hammer phenomena during strikes, and delivers fast return speed with high striking frequency.



• Stable & Durable Structure with Easy Maintenance

  The fully hydraulic drive system ensures extended piston service life, while the X-guide rail structure multiplies the hammer rod's lifespan. With ultra-low failure rates and minimal maintenance costs, the machine delivers exceptional operational reliability.

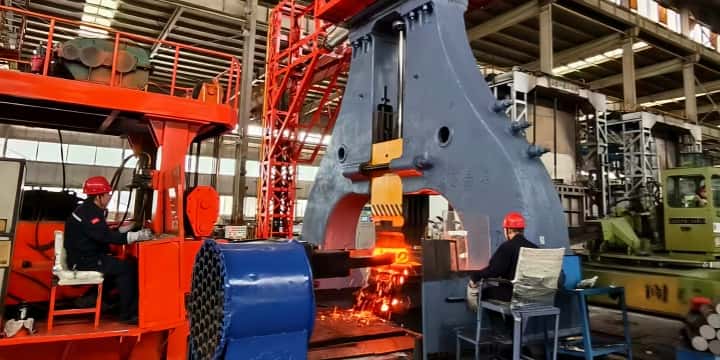

• Remote-Controlled Automated Striking

  Upgradable with aviation-grade joystick controls for either remote automated or manual striking operations. The system perfectly replicates all original forging hammer movements and enables synchronized control with manipulators, achieving optimal inter-equipment coordination.



Product parameters
