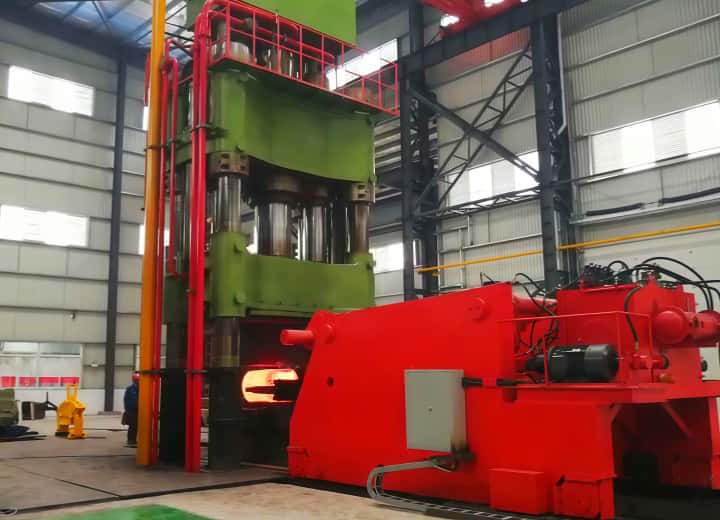

Full Hydraulic Open Die Forging Press (Y13A 800-16000T)
Full Hydraulic Open Die Forging Press (Y13A 800-16000T)
Full Hydraulic Open Die Forging Press (Y13A 800-16000T)
Full Hydraulic Open Die Forging Press (Y13A 800-16000T)
Full Hydraulic Open Die Forging Press (Y13A 800-16000T)
Full Hydraulic Open Die Forging Press (Y13A 800-16000T)
Full Hydraulic Open Die Forging Press (Y13A 800-16000T)

Full Hydraulic Open Die Forging Press (Y13A 800-16000T)

✅ High Speed & High Precision

Our Y13A Open Die Forging Press features high forging frequency and stable repeated precision, ensuring high-quality forgings and efficient production.

✅ Strong Anti-Eccentric Load & High Stability

This Y13A series hydraulic press adopts a pre-stressed frame with excellent rigidity, strong anti-eccentric load capacity, and stable, low-vibration operation.

✅ Intelligent & Automatic Linkage Control

The Y13A open die forging press supports press + manipulator linkage, program forging, and remote control, realizing fully automated free forging production.

✅ Efficient Tool Change & Safe Operation

The Y13A hydraulic press has a quick die change system and full-range safety protection, making operation easier and maintenance more convenient.
Send Email Inquiry Now

Product Features

  • Introduction to Y13A Open-Die Forging Hydraulic Press

    Y13A Series Hydraulic Open Die Forging Press  is suitable for free forging of metal materials and loosetooling forging. It has the functions of fast forging, constant forging, pressure maintaining, etcand can meet the requirements of forging processes, such as upsetting, drawing, punchingenlarging, bending, and staggered shifting.

    Introduction to Y13A Open-Die Forging Hydraulic Press

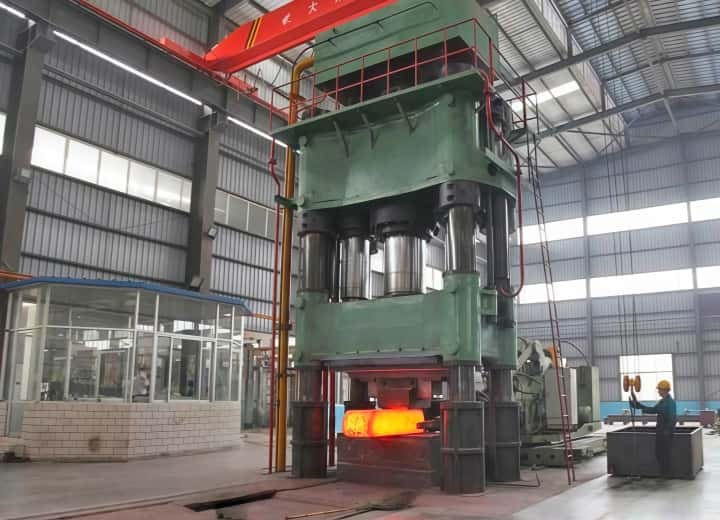

  • Features of the Y13A Series Hydraulic Open Die Forging Press

    Intelligent control system/multi-function interaction, multi-directional real-time monitoring
    Convenient and quick replacement of upper mold device/high efficiency of the production line
    Hydraulic integrated control system/hydraulic press operates quickly, smoothly and no vibration
    Practical multi-point multi-stage pressure relief system/ high stability of the equipment
    Remote control operation/simple operation, low labor intensity, safe and convenient
    Multiple safety detection devices/multi-way detection and protection

    Features of the Y13A Series Hydraulic Open Die Forging Press

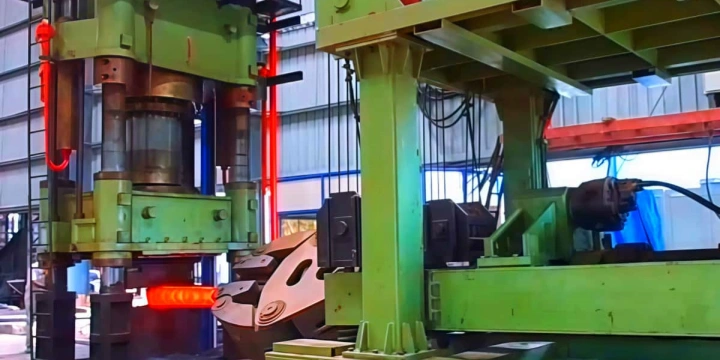

  • Intelligent Control System

    Enables multi-functional interaction and omnidirectional real-time monitoring with user-friendly operation and reduced labor intensity.

    Intelligent Control System

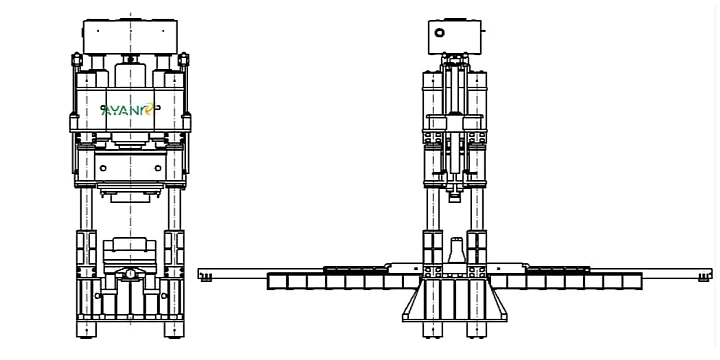

  • Enhanced Productivity & Cost Efficiency

    Features strong process adaptability and stable hydraulic performance, equipped with quick die-change devices to maximize production line efficiency while reducing costs.

    Enhanced Productivity & Cost Efficiency

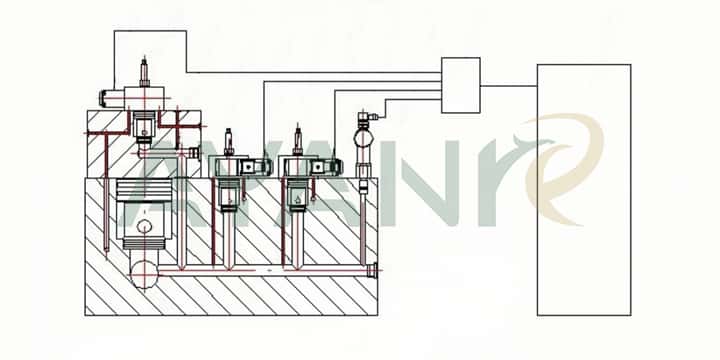

  • Superior Stability

    he integrated hydraulic system ensures fast and smooth press movements, complemented by a practical multi-point multistage pressure-release system for exceptional operational stability.

    Superior Stability

  • Doubled Safety Assurance

    Incorporates multiple safety detection mechanisms providing comprehensive monitoring, safety alerts, maintenance reminders, and protective functions.

    Doubled Safety Assurance

Product parameters

Item Unit Y13A-800 Y13A-1250 Y13A-1600 Y13A-2000 Y13A-2500 Y13A-3150 Y13A-4000 Y13A-5000 Y13A-6300 Y13A-8000 Y13A-10000 Y13A-12500 Y13A-16000
Nominal pressure MN 8 12.5 16 20 25 31.5 40 50 63 80 100 125 160
Clearance distance mm 2300 2600 2900 3100 3300 3800 4000 4600 5300 6000 6600 7200 7800
Slide stroke mm 1000 1200 1400 1500 1600 1800 2000 2200 2500 2800 3200 3600 4000
Column center distance mm 1900×1100 2200×1300 2600×1400 2800×1500 3200×1600 3600×1900 4400×2100 4600×2200 4700×2300 4800×2400 5100×2600 5500×2800 6000×3000
Forging speed Down speed mm/s 300 300 300 300 250 250 250 250 250 250 250 250 250
Working speed Level 1[Nominal pressure] mm/s(MN) 68[8] 68[12.5] 180[6] 160[8] 172[10] 164[12.5] 152[16.5] 186[16.5] 183[21] 183[27] 183[33] 180[41] 180[53]
Level 2[Nominal pressure] mm/s(MN) / / 108[10] 105[12] 102[15] 104[19] 104[23.5] 93[33.5] 92[42] 92[53] 92[67] 90[84] 90[107]
Level 3[Nominal pressure] mm/s(MN) / / 68[16] 63[20] 64[25] 64[31.5] 62[40] 62[50] 61[63] 61[80] 61[100] 60[125] 60[160]
Return speed mm/s 300 300 300 300 250 250 250 250 250 250 250 250 250
Slider bottom surface Rapid forging Level 1 min⁻¹ 60-70 60-70 60-70 60-70 60-70 55-65 50-60 45-55 40-50 35-45 30-40 25-30 20-25
Standard forging Level 3 min⁻¹ / / 25-35 25-35 25-35 20-30 20-30 20-30 15-25 10-20 7-15 5-10 3-6
Travelling worktable Distance mm 2700 * 1300 3200 * 1500 3500 * 1600 3700 * 1700 5000 * 2000 5000 * 2300 6000 * 2500 6000 * 2800 7000 * 3000 7000 * 3200 8000 * 3500 9000 * 4000 12000 * 4500
L& R stroke mm ±1000 ±1400 ±1600 ±1800 ±2000 ±2500 ±2500 ±3000 ±3000 ±3000 ±3250 ±3500 ±4000
Dimensional accuracy mm ±1 ±1 ±1 ±1 ±1 ±1 ±1 ±1.5 ±1.5 ±1.5 ±2 ±2 ±3
Total power kW 700 1050 1400 1600 2050 2500 3200 3800 4800 6200 7500 9500 12000
Height above floor mm ≤6800 ≤8000 ≤8500 ≤9000 ≤9500 ≤10000 ≤11000 ≤13000 ≤14500 ≤16000 ≤17500 ≤19000 ≤22000


*Note:Above parameters are standard parameters and no announce if there are any changes.
