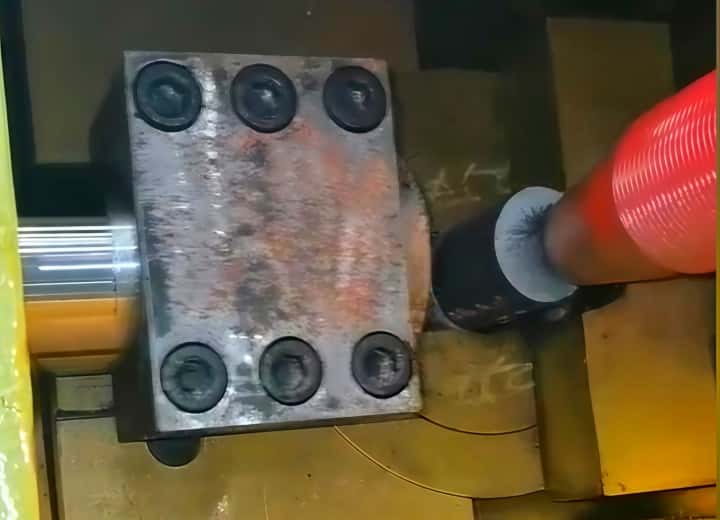

A Billet Shearing Machine, commonly known as a "billet shearing machine" or "billet cutter," is a fixed-length cutting equipment located at the front end of a steel rolling or forging production line. Its core task is to accurately shear the continuously heated long billets into short pieces of the specified length according to process requirements, preparing materials for subsequent rolling or forging processes.

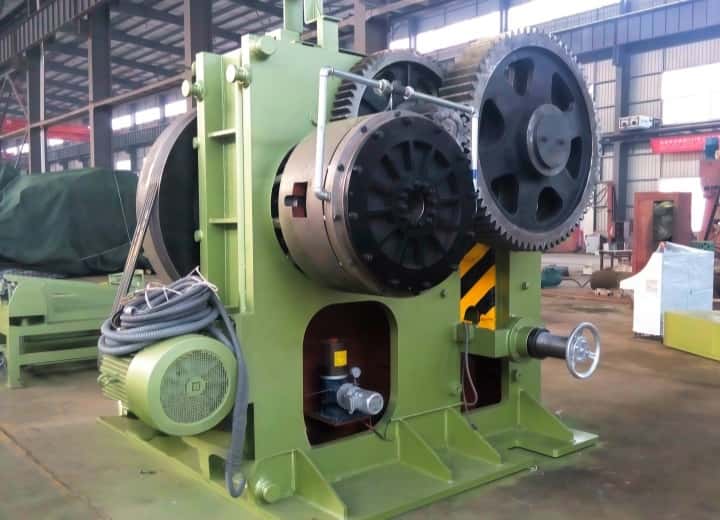

Machine frame adopts steel plate welding structure, pneumatic friction clutch and brake, side draw-out blades for fast change. With automatic loading, automatic feeding. automatic sizing, automatic cutting, automatic counting, automatic lubricating, automatic shut-down protection function etc. Cold Shearing section taper≦ 3°. Weight error ≦ ±1.5%.
| Item | Unit | Q42-160 | Q42-250 | Q42-350 | Q42-500 | Q42-800 | Q42-1000 | Q42-1250 | Q42-1600 |
| Nominal Cutting Foroe | kN | 1600 | 2500 | 3500 | 5000 | 8000 | 10000 | 12500 | 16000 |
| Max.cutting Diameter | mm | Φ65 | Φ80 | Φ90 | Φ100 | Φ138 | Φ160 | Φ180 | Φ200 |
| Contingcus Strokes | min | 50 | 45 | 33 | 18 | 16 | 16 | 16 | 16 |
| Cutting Length | mm | 50-350 | 65-350 | 65-350 | 65-350 | 80-500 | 120-1000 | 700-2400 | (customer decide) |
| Main motor power | kW | 15 | 18.5 | 30 | 45 | 55 | 75 | 90 | 160 |
| Machine outer size (main body)LxWxH | mm | 10300×3400×2800 | 10700×3400×2900 | 10400×3100×3260 | 12000×4300×2700 | 11270×4500×4740 | 8800×3900×4200 | 5900×3900×5600 | 5900×4900×6200 |
