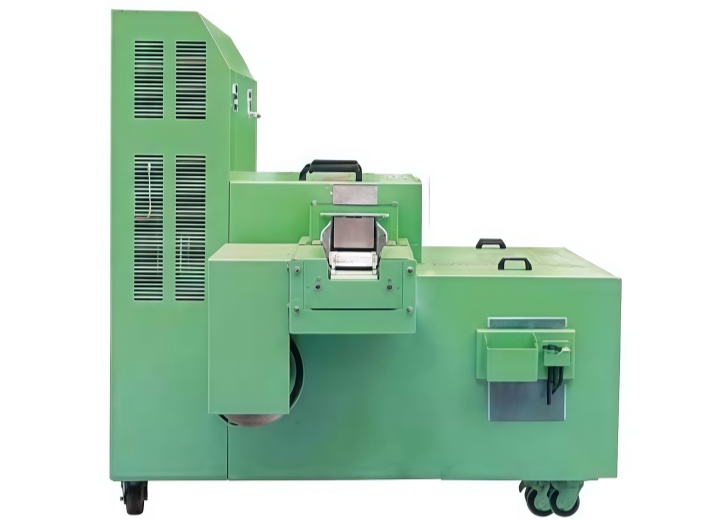

Descaling Machine

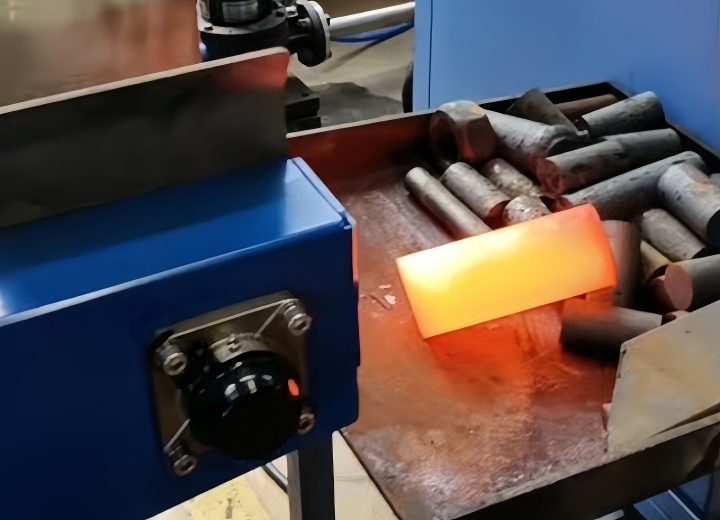

The QXJ Series Descaling Machine, also known as an oxide scale cleaning machine, is critical equipment in forging production lines for improving the surface quality of forgings. It features a stainless steel skewer chain design and a multi-layer filtration system, enabling 360° all-round efficient cleaning of workpieces with automatic oxide scale collection. It achieves a remarkable descaling rate of over 95%, effectively solving the oxide scale problem originating from electric furnace heating.

Send Email Inquiry Now

Product Features

High-Efficiency Cleaning: 360° all-round cleaning with a descaling rate exceeding 95%. Automatic Collection: Integrated multi-layer filtration system for automatic and efficient scale collection and separation. Durable Design: Constructed with a sturdy stainless steel skewer chain, built to withstand harsh operating conditions. Quality Improvement: Significantly enhances the surface quality of forgings and reduces the need for subsequent machining. Targeted Solution: Specifically designed to eliminate oxide scale residue from electric furnace heating processes.

Product parameters

Item	Unit	QXJ-80-100-15	QXJ-80-100-20	QXJ-80-160-20	QXJ-80-100-28	QXJ-80-160-28	QXJ-120-160-20	QXJ-120-220-20	QXJ-100-100-30	QXJ-150-160-30
Work pressure	MPa	1.2-1.6	1.6-2.0	1.6-2.0	2.4-2.8	2.4-2.8	1.6-2.0	1.6-2.0	2.8-3.5	2.8-3.5
Bar diameter	mm	Φ15-60	Φ15-80	Φ15-80	Φ15-80	Φ15-80	Φ60-120	Φ60-120	Φ60-100	Φ80-150
Size after blanking	mm	100×80	100×80	160×80	100×80	160×80	160×120	220×120	100×100	160×150
Number of nozzles	pc	12	18	18	18	18	24	24	18	24
Power	kW	4.5	8.25	8.25	19.5	19.5	11.75	11.75	15.75	22.75
Dimensions	mm	1220×1150×1300	1420×1550×1500	1420×1550×1500	1420×1550×1900	1420×1550×1900	1630×1550×1570	1630×1550×1570	1630×1610×1500	1630×1610×1610
