✅ Full Specifications & Wide Application

Our C41A series Pneumatic Forging Hammer covers 15KG–2000KG complete models, fully adapting to all kinds of small and medium free forging scenarios.

✅ Plug-and-Play & Flexible Operation

This C41A pneumatic hammer only needs power connection with no auxiliary air equipment required. It supports single blow, continuous blow and adjustable striking force for full forging processes.

✅ Robust Structure & Ultra Stability

The C41A pneumatic hammer adopts high-rigidity cast iron frame and precisely honed cylinders. Reinforced core parts ensure low failure rate and long service life under heavy impact loads.

✅ Low Maintenance & High Cost Performance

Featuring simple mechanical structure and mature technology, the C41A series pneumatic hammer delivers stable performance, low operating cost and excellent value for batch forging production.

Product Features

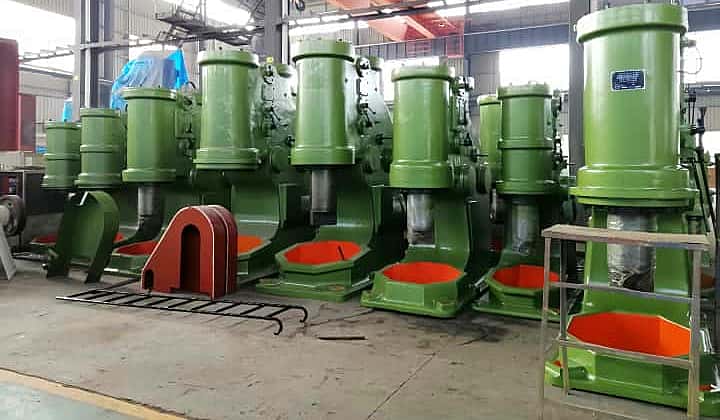

  • Introduction to Pneumatic Forging Hammer

    The C41A Series Pneumatic Forging Hammer features robust and durable construction with an integrated air compression mechanism. It operates upon electrical connection and delivers powerful striking energy, high frequency, low failure rates, and a spacious working area. This hammer is ideally suited for producing various types of open-die forgings.

    Introduction to Pneumatic Forging Hammer
  • Wide Application Range

    Capable of performing all open-die forging processes with user-friendly operation and high cost-effectiveness. Ideal for diverse forging applications.

    Wide Application Range
  • Powerful Striking Energy

    Excellent pressure retention ensures superior energy output, enabling smaller hammers to handle heavy-duty forging tasks.

    Powerful Striking Energy
  • High Production Efficiency

    With fast striking speed and high frequency, it delivers superior productivity and excellent economic benefits.

    High Production Efficiency
  • Easy Maintenance

    The L-type monoblock cast body provides simple structure, minimal routine maintenance, low upkeep costs, and reliable durability.

    Easy Maintenance

Product parameters

item unit C41A-15L C41A-25L C41A-40L C41A-55L C41A-75L C41A-110L C41A-150L C41A-250B C41A-400B C41A-560B C41A-750B C41A-1000L C41A-2000L
Weight of falling part kg 15 25 40 55 75 110 150 250 400 560 750 1000 2000
Blow energy kJ 0.16 0.27 0.53 0.7 1 1.98 2.5 5.6 9.5 13.7 19 27 54
Max. blow frequency min-1 300 250 245 230 210 180 180 140 120 115 105 95 80
Working area height mm 160 240 245 270 300 355 370 450 530 600 670 800 1000
Distance from center line of
 hammer rod to frame
mm 170 235 270 300 330 400 350 420 520 550 750 800 950
Malleable
 blank
Square mm 30×30 40×40 52×52 60×60 65×65 110×110 130×130 145×145 220×220 270×270 270×270 290×290 350×350
Round mm Φ35 Φ48 Φ68 Φ75 Φ85 Φ120 Φ145 Φ175 Φ240 Φ280 Φ300 Φ320 Φ400
motor Model / Y100L1-4-B3 Y132S-6-B3 Y132M1-6-B3 Y160M-6 Y132M-4 Y180L-6-B3 Y180M-4 Y180L-4 Y200L-4 Y280S-6 Y280M-6 Y315S-6 Y315L2-6
Power kW 2.2 3 4 7.5 7.5 15 18.5 22 30 45 55 75 132
Machine
 weight
Frame kg 290 770 920 1380 2700 3300 3260 5000 8000 9800 17000 20000 48000
Steel
Mount
kg 200 310 343 370 1500 2500 4800 6720 9000 12000 24000
Machine dimensions mm 1180*650*1575 1470*740*1835 1650*800*1920 1860*880*2100 1620*930*2220 1910*1070
*2382
2390*1085*2150 2700*1000*2540 3075*1100*2884 3480*1160*3157 3920*1370*3175 4300*1500*3652 5820*2140*4390

*Note:Above parameters are standard parameters and no announce if there are any changes.
