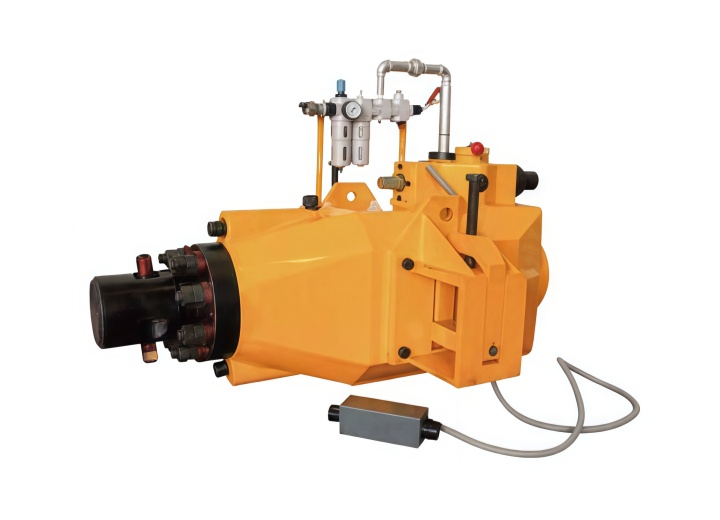

DXT Series Key Driver

The DXT Series Key Driver is a professional and efficient tool designed for forging production lines, specializing in the rapid installation and removal of wedges in forging hammer dies. Powered by compressed air, it delivers accurate and controllable strike energy to apply precise installation force to die wedges. It can be operated in conjunction with a forklift, offering a safe, reliable, and efficient solution that significantly enhances die changeover and maintenance productivity.

Send Email Inquiry Now

Product Features

Precise Striking: Compressed air-powered operation delivers accurate and controllable strike energy for secure wedge installation. Forklift-Compatible: Designed to work seamlessly with forklifts for easy positioning and flexible operation in the workshop. Safe & Reliable: Built to meet safety standards, ensuring stable and controlled operation that minimizes workplace risks. Rapid Maintenance: Significantly reduces die changeover time, boosting overall production line efficiency.

Product parameters

Item	Unit	DXT-100	DXT-200	DXT-400	DXT-800
Max. strike energy	kJ	1	2	4	8
Compressed air connection	G	1"	1"	1"	1½ ″
Max. wedge size	mm	60 * 80 * 500	80 * 120 * 1000	100 * 200 * 2000	All the wedges
Working pressure	MPa	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Max. piston stroke	mm	400	500	600	700
Weight (with bracket)	kg	860	1560	2860	5500
Suitable for hammer capacity	kJ	0-25	25-75	75-150	150-500
