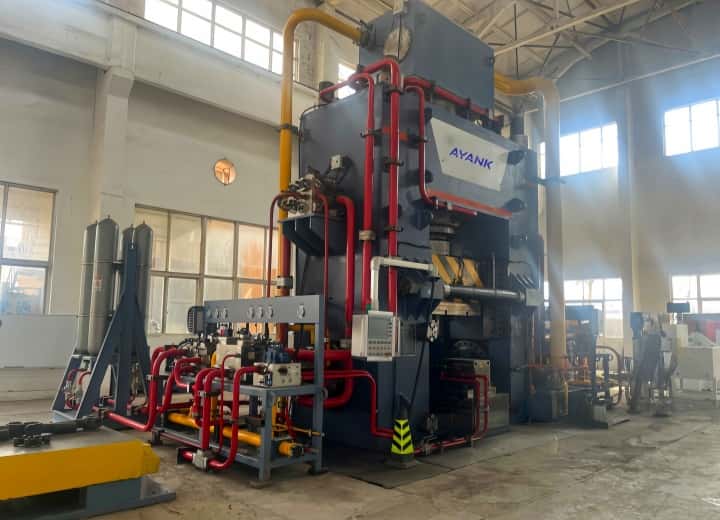

Multi directional die forging hydraulic press（Y16A ）

Multi directional die forging hydraulic press（Y16A ）

✅ Multi-Directional Forming & Near-Net Shape

Our Multi directional die forging hydraulic press realizes one-step forming for complex forgings with multi-directional synchronous loading, achieving high-precision near-net shape results.

✅ High Material & Energy Saving

This multi-directional forging hydraulic press saves 20%-35% materials and energy, reduces machining allowance, and greatly lowers overall production costs.

✅ Superior Forging Performance & Stability

The multi-directional hydraulic press improves forging density and mechanical strength by over 30%, ensuring stable and consistent quality for high-end precision forgings.

✅ Intelligent & Flexible Production

Equipped with servo control and robotic integration, the multi-directional forging press supports flexible process customization and full-data traceability for smart manufacturing.

Send Email Inquiry Now

Product Features

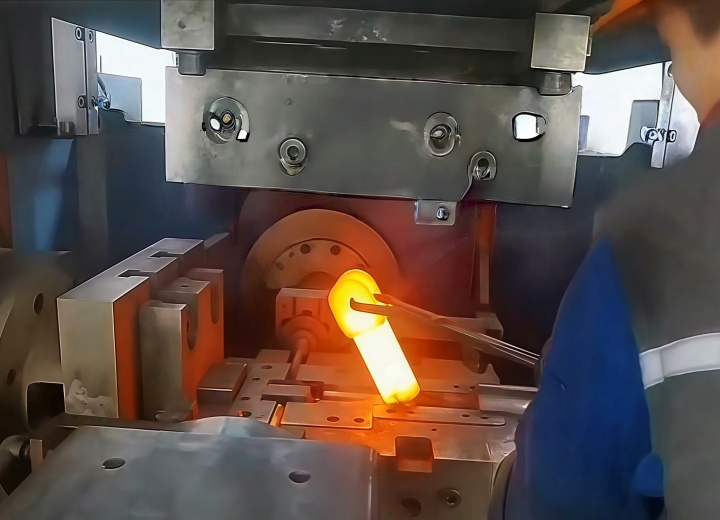

Introduction to Multi-directional Forging Hydraulic Press
The Y16A series Multi directional die forging hydraulic press is a new-generation intelligent multi-directional forging equipment. It features enhanced structural rigidity and guiding accuracy, a large mold and operating space, and rapid loading speeds. Equipped with an intelligent detection and control system, it enables digital control over the sequence and speed of movements in all directions, achieving excellent synergistic effects. This not only allows for the direct forging of concave-convex holes in various orientations of the workpiece but also significantly improves the mechanical properties of the material.
Features of Flexible Multi-directional Die Forging Press
- Versatility: Complex forgings can be formed in one operation or sequentially from 9 different directions.
- Flexibility: Customizable action sequence and speed in any direction.
- Rapid Response: Utilizes servo proportional valve + magnetostrictive sensor for precise piston rod position control.
- Precision: Employs servo proportional valve + magnetostrictive sensor for accurate piston rod positioning.
- Stability: High structural rigidity and guidance accuracy, strong anti-eccentric load capability, excellent product consistency.
- Intelligence: Enables automated production with visual inspection system to detect forging dimensions and quality.

Product Parameters(Y16A-1000/630×2/140×2)

Cylinder Type	Tonnage	Stroke	Piston Diameter	Piston Rod Diameter	Forward Speed	Return Speed
Unit	T	mm	mm	mm	m/s	m/s
Main Cylinder	1000	550	720	685	400 (no-load)	400
Right Side Cylinder	630	370	600	565	200	200
Right Perforation Cylinder	100	160	220	160	200	200
Left Side Cylinder	630	370	600	565	200	200
Front Cylinder	140	100	280	160	120	120
Rear Cylinder	140	370	280	160	120	120
Punching Cylinder	50	50	160	80	150	200
Ejector Cylinder	100	130	220	160	100	200

Applications of Multi-Directional Forging Hydraulic Press in Various Industries

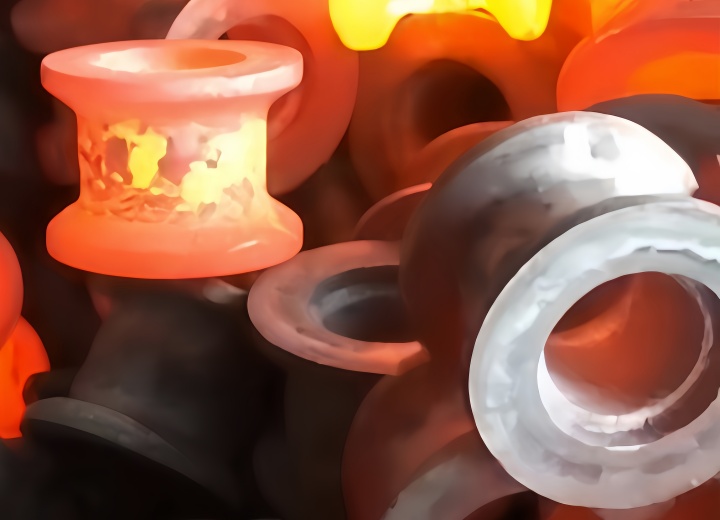

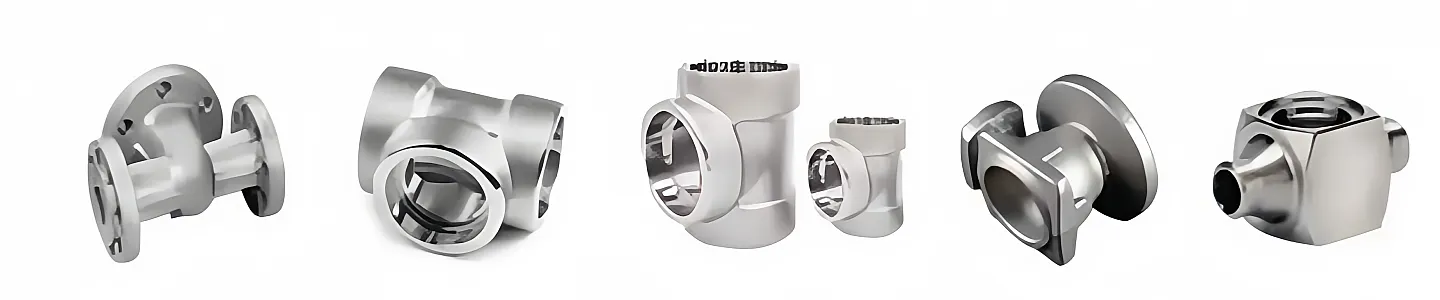

Valve Forgings

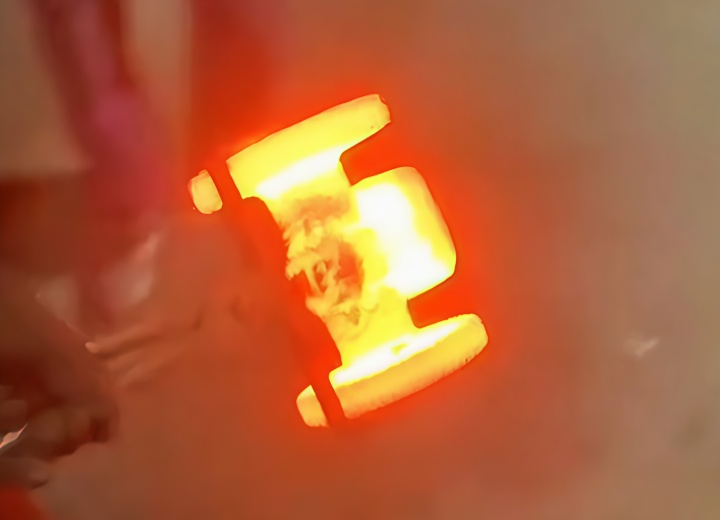

Mainly include high-temperature, high-pressure forged steel valves. Classified by the number of through-holes in the valve body and the presence/absence of flanges: three-way, four-way, or multi-way configurations, as well as those with main flanges, side flanges, full flanges, or no flanges.

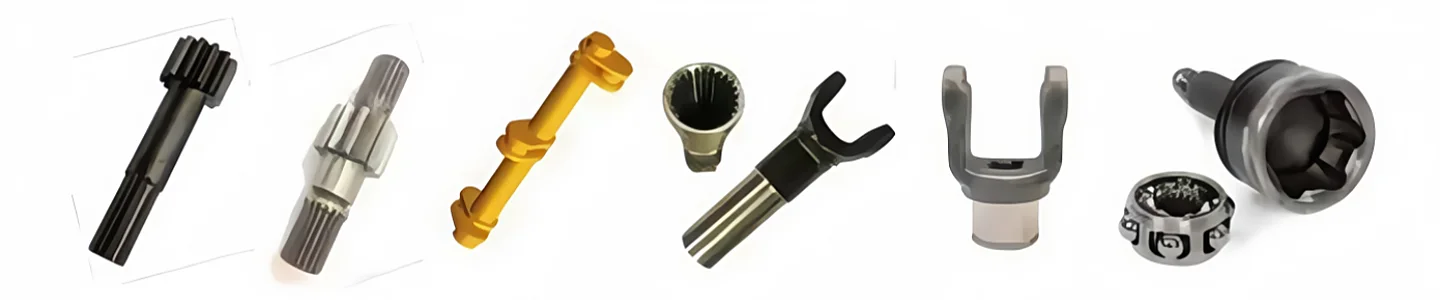

Multi-Directional Forming Long-Shaft Forgings

Missile nozzles, engine fuel injectors, oil drilling rod joints, internal combustion engine crankshafts, automotive (left/right) half shafts, constant velocity universal joints of the ball cage type, transmission double gears, transmission shaft yoke forgings, railway retarder cylinders, etc.

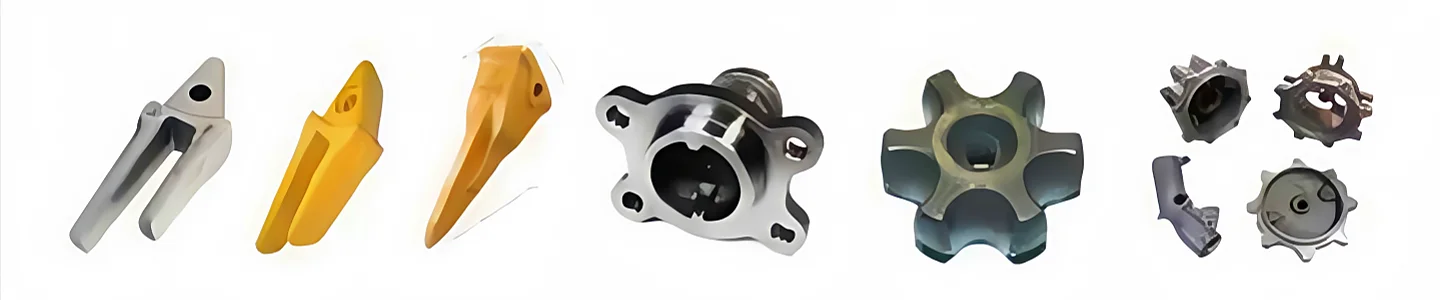

Longitudinal Multi-Cylinder Forming Forgings

Excavator bucket teeth, longitudinal multi-axial forming parts, etc.

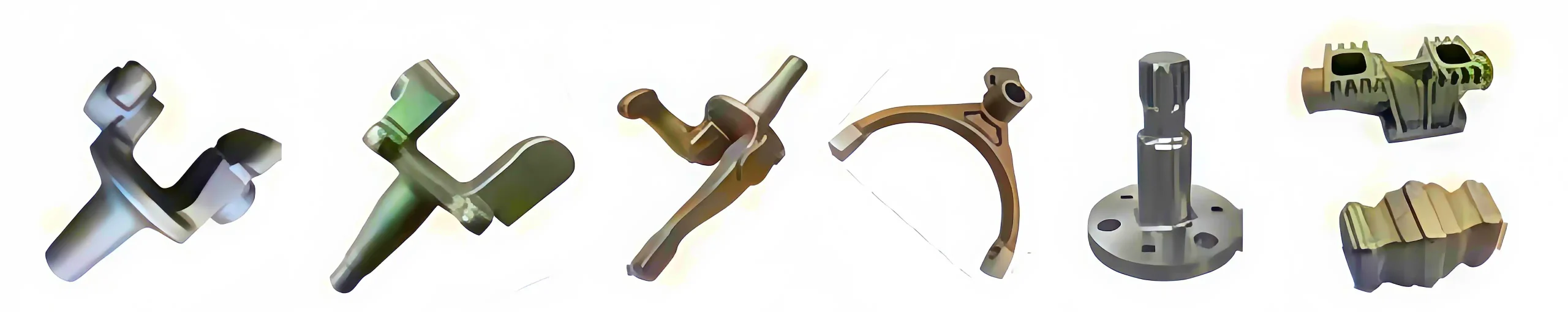

Multi-Directional Forming Special-Shaped Forgings

Automatic transmission planet carriers, high-speed railway fasteners, automotive steering pistons, automotive control arms, aircraft landing gears, etc.
