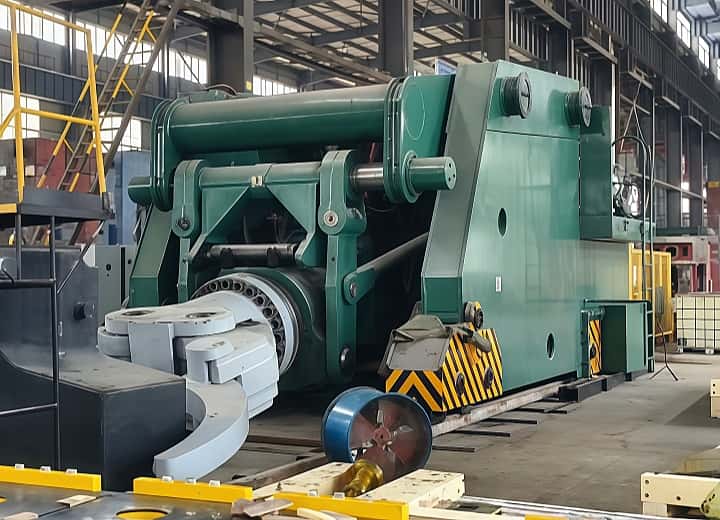

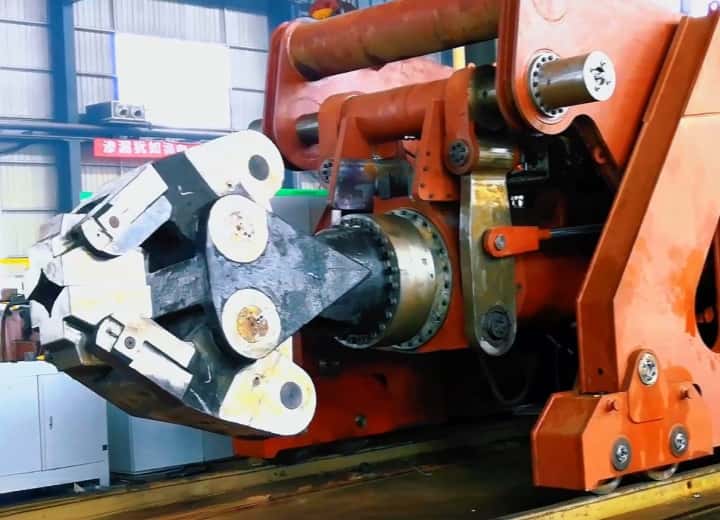

CNC Forging Manipulator

CNC forging manipulator is fully hydraulic drive type with lateral shift function, which can be operated by manual, semi-auto, auto,able to work with open die hydraulic forging press through digital input to realize linkage operation. It is used to hold forgings in forging production under working with main forging machine, which greatly increases the productivity and forging quality, reduces labor intensity, realizes forging production mechanization.

Send Email Inquiry Now

Product Features

It offers fully hydraulic operation with lateral shift and multiple control modes (manual/semi-auto/auto). Its key benefit is seamless linkage with forging presses, which significantly enhances productivity and final forging quality. The manipulator securely holds and positions heavy forgings, thereby mechanizing the process, ensuring operational safety, drastically reducing labor intensity, and enabling efficient, large-scale industrial production.

Product parameters

Item	Unit	T31DYB-8	T31DYB-10	T31DYB-15	T31DYB-20	T31DYB-30	T31DYB-40	T31DYB-50	T31DYB-60	T31DYB-80	T31DYB-100	T31DYB-120
Nominal loading force	kN	80	100	150	200	300	400	500	600	800	1000	1200
Max. holding torque	kN.m	200	250	400	500	800	1000	1250	1500	2000	2500	3000
Max. holding diameter range	mm	170-1000	170-1030	170-1100	200-1200	280-1300	165-1600	175-1700	175-1860	210-2100	250-2200	300-2300
Camp head rotating speed	r.p.m	20	20	18	18	16	16	14	14	13	12	12
Min. clamp horizontal height	mm	800	800	800	900	900	900	1090	1250	1350	1400	1500
Clamp vertical stroke	mm	1000	1000	1500	1800	1800	1800	1900	2000	2000	2200	2200
Clamp up/down pitch angle	°	7/9	7/10	7/11	7/12	7/13	7/14	7/15	7/16	7/17	7/18	7/19
Clamp lateral shift distance	mm	±150	±150	±180	±200	±200	±200	±250	±300	±300	±300	±300
Clamp swing shift distance	°	±8	±8	±8	±8	±8	±8	±8	±8	±8	±8	±8
Manipulator travelling speed	m/min	30	30	30	30	30	30	30	30	30	30	30
Rail distance	mm	2500	2800	3000	3300	3600	3600	4000	4400	5000	5300	5700
