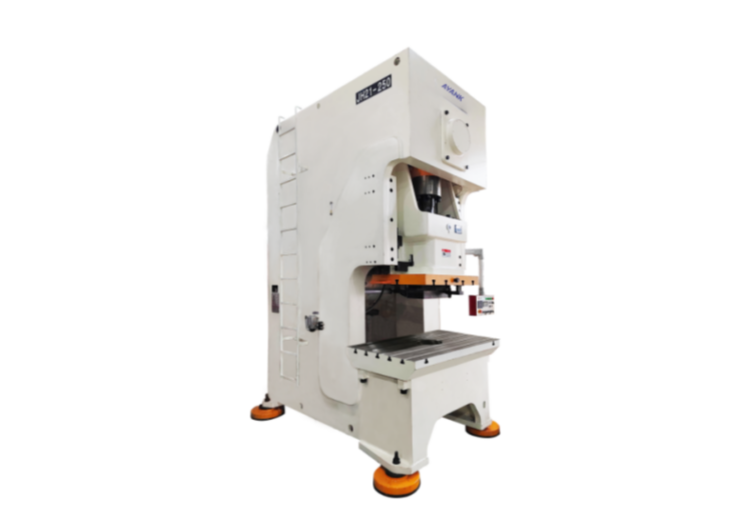

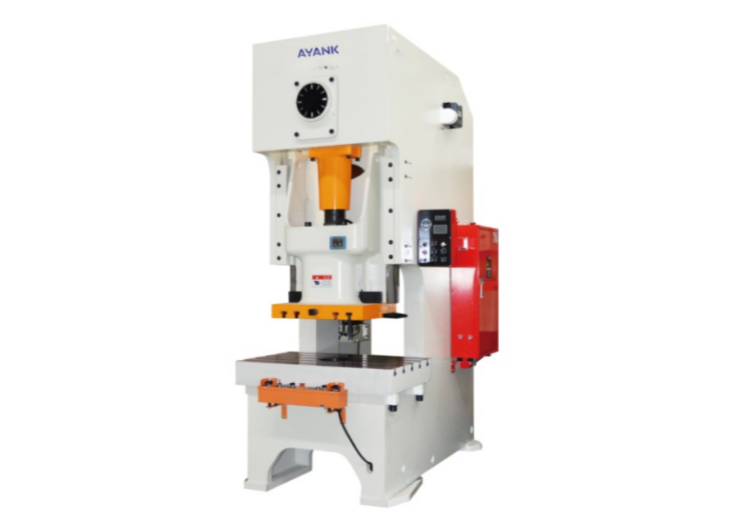

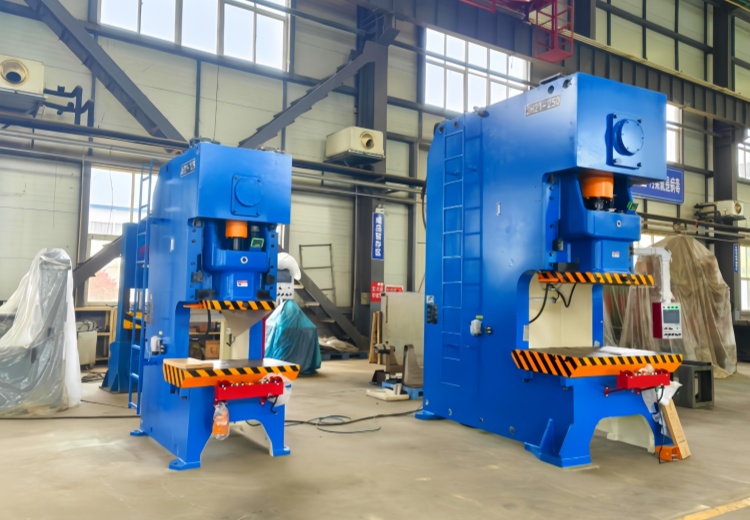

Open Back Fixed Bed Press

The JH21 Series Open Back Fixed Bed Press is a critical equipment in forging production lines, specifically designed for secondary finishing processes of forged components. It performs trimming, piercing/punching, and sizing operations through efficient stamping actions, ensuring dimensional accuracy and clear contours of forged parts. Widely applied in the final precision processing stage of various metal forming processes.

Send Email Inquiry Now

Product Features

JH21 Series Press - Key Features Multi-functional Integration Combines trimming, piercing, and sizing functions in one system, reducing production line complexity by replacing single-purpose equipment. Precision Trimming & Deburring Equipped with high-precision trimming dies to quickly remove forging flashes (burrs), achieving smooth and flat workpiece contours. Efficient Piercing Capability Accurately punches through webs in center-hole forgings (e.g., nuts) to form through holes, improving processing efficiency. High-Stability Sizing Eliminates minor deformations in forged parts through final sizing, ensuring full compliance with design specifications and consistent product quality.

Product parameters

Item		Unit	JH21-25	JH21-45	JH21-60	JH21-80	JH21-100	JH21-125	JH21-160	JH21-200	JH21-250	JH21-315	JH21-400
Form		/	S	S	S	S	S	S	S	S	S	S	S
Nominal force		kN	250	450	600	800	1000	1250	1600	2000	2500	3150	4000
Nominal force stroke		mm	3	4	4	5	5	6	6	6	6.5	7	8
Slider trave		mm	80	120	140	160	160	180	200	200	220	220	250
Number of trips	Fixed	min⁻¹	100	80	70	60	55	50	45	45	33	33	30
Number of trips	Variable	min⁻¹	60-120	50-95	45-85	40-75	35-65	35-60	30-55	30-55	25-40	25-40	20-35
Maximum mold height		mm	250	270	300	320	335	350	400	450	500	500	550
Mold height adjustment amount		mm	50	60	70	80	90	90	100	110	120	120	120
Distance from slider center to body		mm	210	225	270	310	330	350	400	430	450	450	450
Column distance		mm	470	525	560	580	670	630	696	910	980	980	1050
Slider bottom surface	About	mm	360	400	480	540	620	620	700	880	900	900	1020
Slider bottom surface	Front and back	mm	250	340	400	460	520	520	580	650	700	700	750
Mold shank hole size	About	mm	50	50	50	50	*70	*70	*70	*70	*70	*70	*70
Mold shank hole size	Front and back	mm	50	60	70	70	*80	*80	*100	*100	*100	*100	*100
Workbench size	About	mm	720	825	930	950	1060	1100	1175	1390	1500	1540	1700
Workbench size	Front and back	mm	400	440	520	600	640	680	760	840	880	880	880
Discharge hole diameter		mm	150	150	150	180	180	200	220	240	240	240	240
Workbench thickness		mm	80	110	130	140	145	155	165	180	190	190	210
Distance of workbench from the ground		mm	750	775	800	845	850	850	900	1000	1000	1000	1100
External dimensions	Front and back	mm	1500	1540	1585	1765	2000	2040	2305	2600	2660	2720	2850
	Left and right	mm	945	1075	1200	1200	1300	1320	1420	1540	1640	1680	1750
	High	mm	2090	2365	2470	2675	2960	2980	3210	3800	3850	3850	4585
Anchor bolt distance	Front and back	mm	990	1095	1105	1225	1350	1445	1665	2020	2230	2200	2385
Anchor bolt distance	Left and right	mm	690	760	840	920	1020	1040	1140	1360	1460	1500	1570
electric motor		kW	3	5.5	5.5	7.5	7.5	11	15	18.5	22	30	37
compressor air pressure		Mpa	0.5
