Forging Charger Rail Bound (ZHJ SERIES )

Forging Charger Rail Bound (ZHJ SERIES )

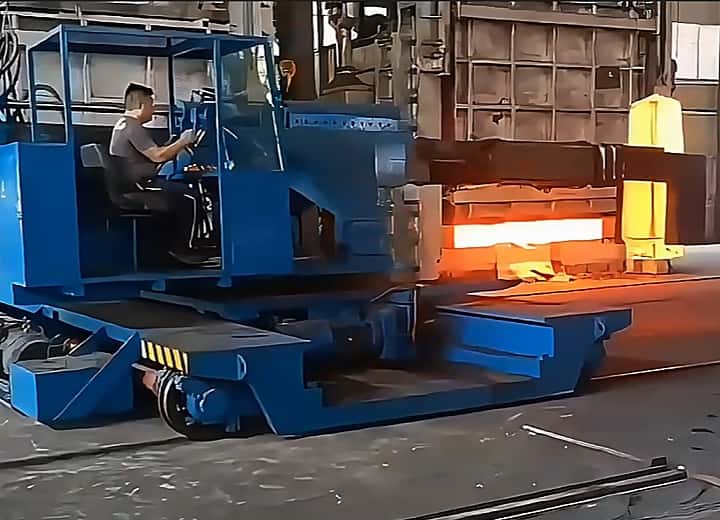

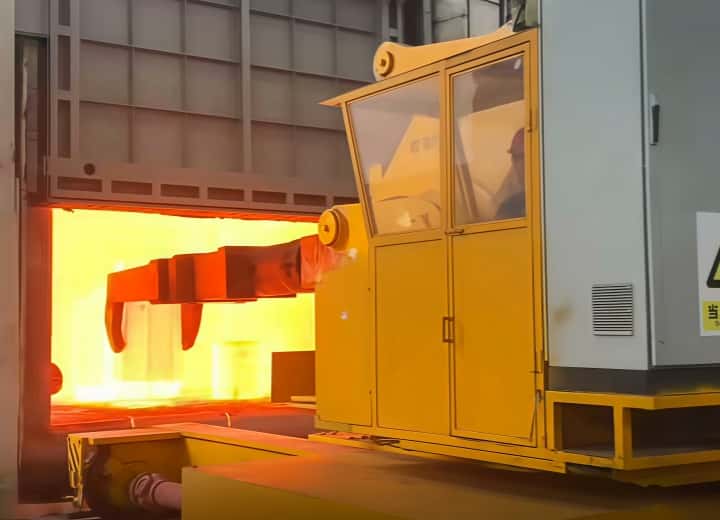

The ZHJ SERIES Forging Charger Rail Bound is hydraulic and mechanical mixed type. According to the operation type, it is divided into clamping type, holding type and fork type, it can accomplish movements, such as loading and charging manipulator travelling, upper part travelling on chassis, upper part rotating, clamp rod stretch out and draw back, clamp rod goes up and down, clamp head rotating action etc.It is used to load and transport the billet and forging from furnace, it greatly reduce the handling time, increases the productivity, reduces labor intensity, realizes forging production mechanization.

Send Email Inquiry Now

Product Features

This hydraulic-mechanical hybrid equipment efficiently loads and transports billets/forgings from furnaces via clamping, holding, or fork mechanisms. It performs multiple movements—traveling, lifting, rotating, and extending—significantly reducing handling time, boosting productivity, and enabling fully mechanized forging processes with minimal labor intervention.

Product parameters

Item	Unit	ZHJ-1	ZHJ-2	ZHJ-3	ZHJ-5	ZHJ-8	ZHJ-10	ZHJ-15	ZHJ-20	ZHJ-30
Nominal loading weight	ton	1	2	3	5	8	10	15	20	30
Rail distance	mm	4000	5000	6000	6000	6000	6500	6500	7000	8000
Loading diameter range	mm	50-600	50-700	100-850	100-1000	150-1350	180-1450	180-1550	200-1660	200-1800
Clamp rod stroke	mm	1800	1800	2100	2100	2300	2300	2300	2300	2300
Clamp rod center height	mm	1235	1285	1450	1800	1756	1790	2000	2300	2500
Loading and charging height	mm	-1500	-1600	-1900	-1900	-2000	-2100	-2400	-2600	-2900
Upper manipulator speed	m/min	14	14	15	15	15	15	15	15	15
Manipulator speed	m/min	48	43	42	41	35	26	26	26	26
Upper manipulator rotating speed	r/min	3	3	3	3	3	3	3	3	3
System pressure	MPa	8	8	10	12	12	12	12	12	12
