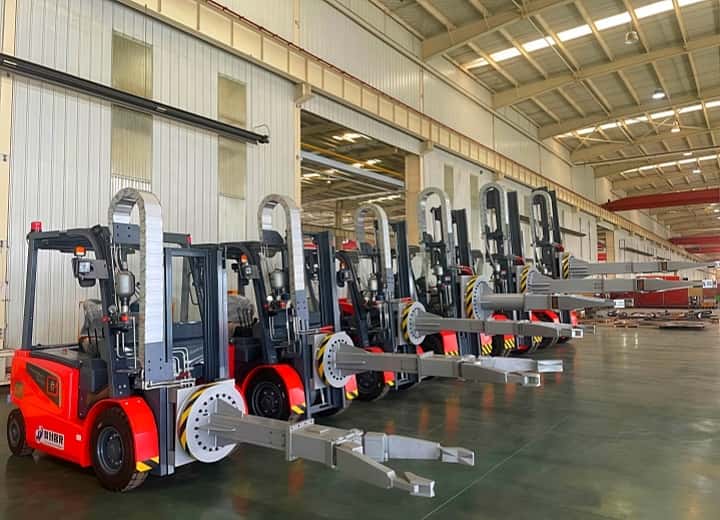

The Forging Charger (Mobile) is mainly used for working piece's loading and charging. also used for transportation of working piece. This mobile forging charger is able to charge work piece from ground, load it into furnace, after heated, charge it from furnace to forging hammer, forging press or ring rolling machine, main forging equipment etc.
Tire-mounted forging manipulators offer exceptional mobility and flexibility, easily moving across the workshop to transport heavy workpieces. They significantly boost productivityby automating the loading/unloading process between the furnace, forging hammer, and press. Their robust design ensures high load capacity and stability, while the enclosed cab provides enhanced operator safetyin harsh forging environments. This combination makes them a versatile and efficient solution for modern forging production lines.
| Item | Unit | ZHJW-0.5 | ZHJW-1 | ZHJW-2 | ZHJW-3 | ZHJW-5 | ZHJW-6 |
| Nominal loading weight | ton | 0.5 | 1 | 2 | 3 | 5 | 6 |
| Loading diameter range | mm | 80-400 | 50-600 | 80-700 | 100-850 | 10-1000 | 100-1000 |
| Min. height of clamp rod | mm | 500 | 500 | 700 | 800 | 1000 | 1000 |
| Max. height of clamp rod | mm | 1500 | 1500 | 1600 | 1600 | 2000 | 2000 |
| Travelling speed | km/h | 18 | 18 | 26 | 26 | 28 | 28 |
| Clamp rod up/down pitch angle | ° | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 |
| Clamp rod rotating angle | ° | 360 | 360 | 360 | 360 | 360 | 360 |
| Clamp front tip to front wheel center distance | mm | 3100 | 3800 | 3800 | 3800 | 3800 | 3800 |
