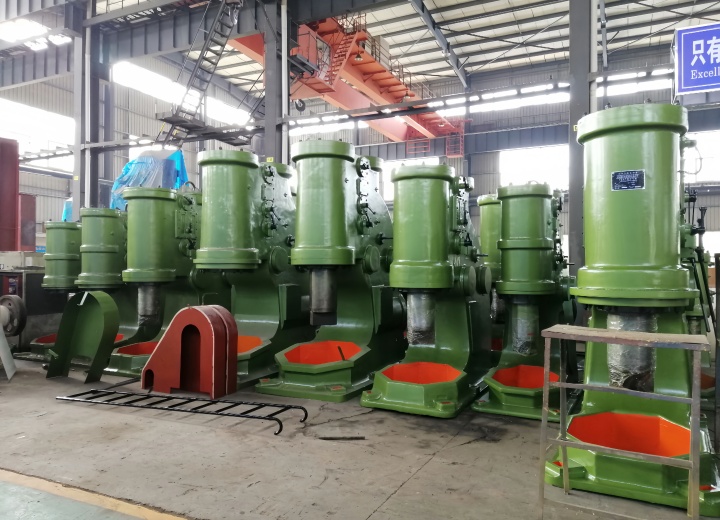

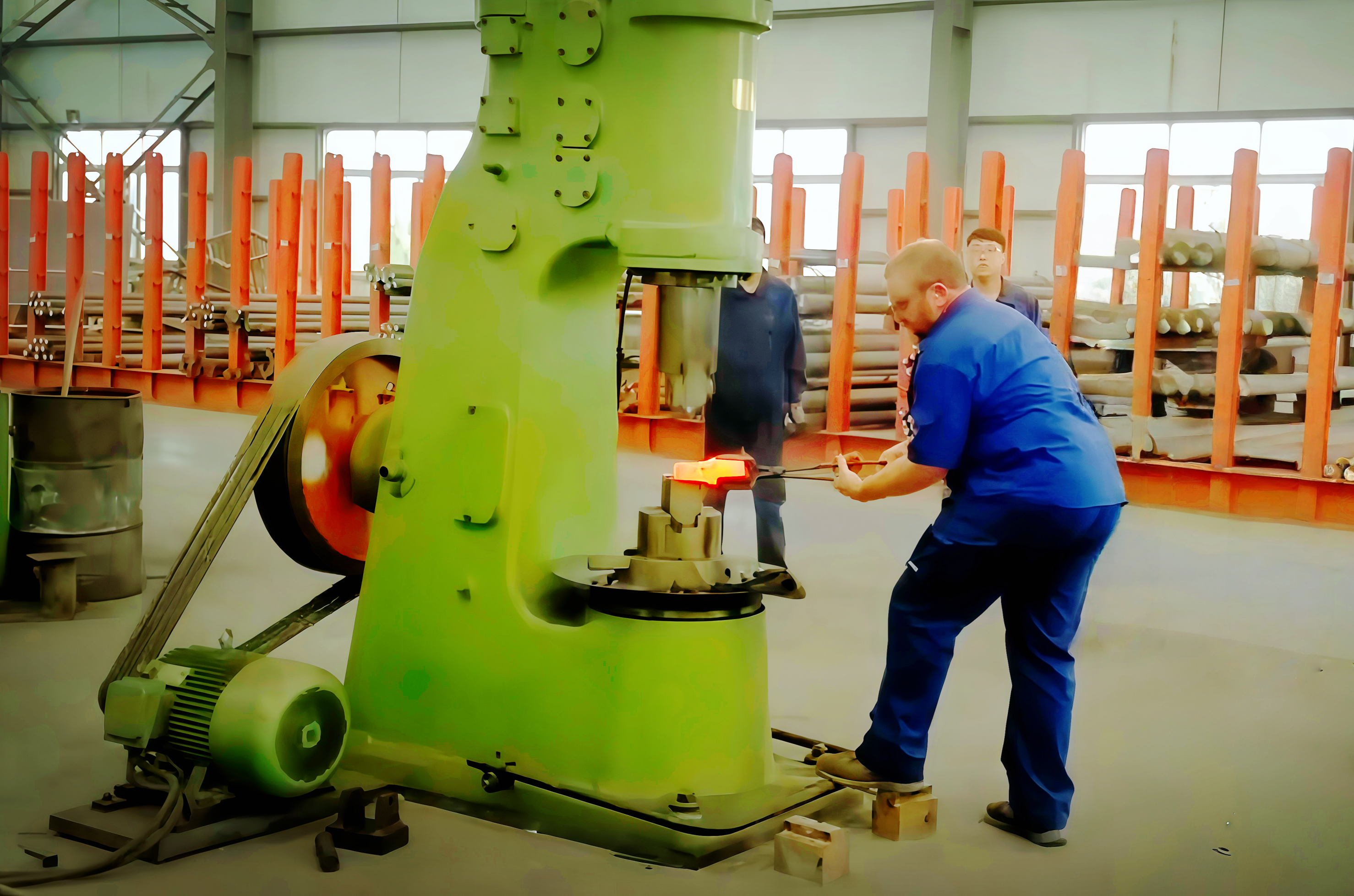

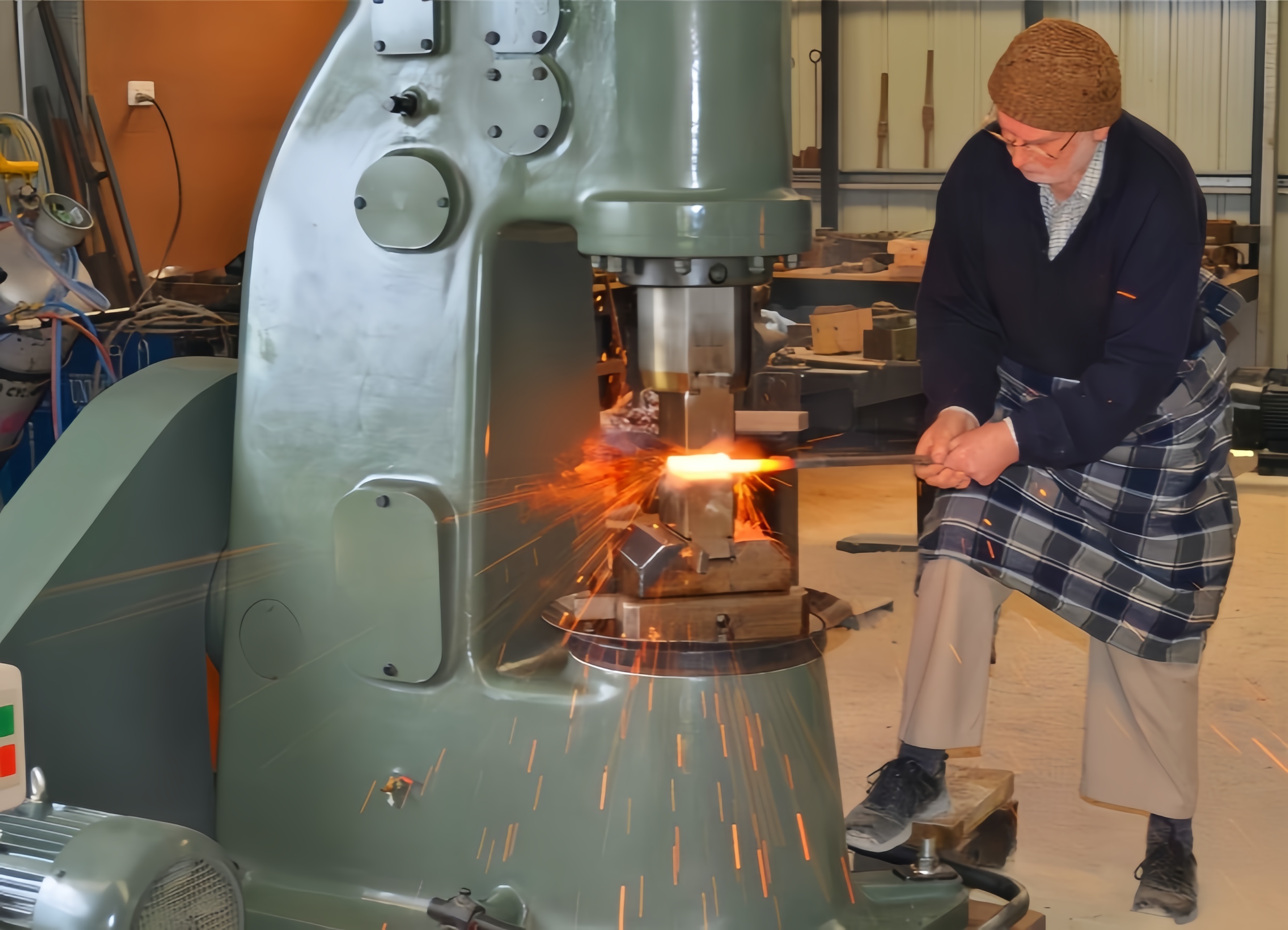

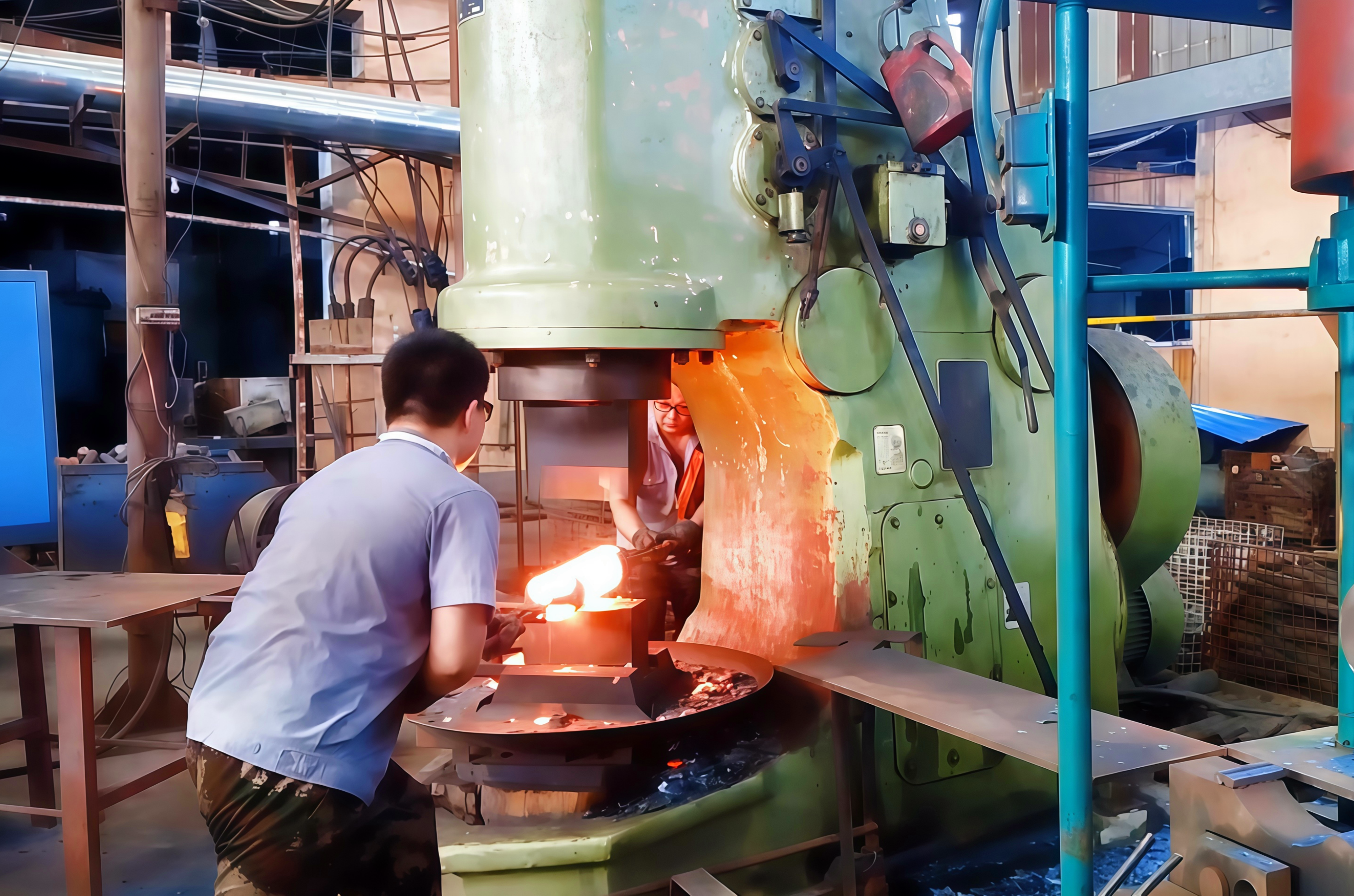

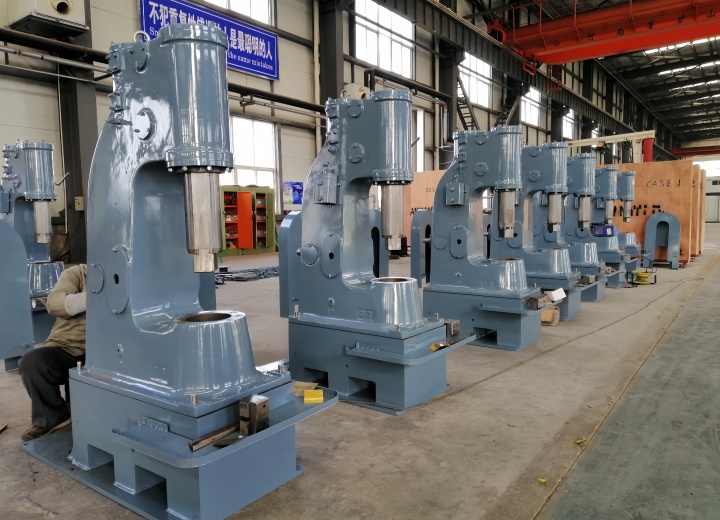

C41A Series Air Hammer featuring robust and durable construction with an integrated air compression mechanism, the C41A series operates upon electrical connection and delivers powerful striking energy, high frequency, low failure rates, and a spacious working area. This hammer is ideally suited for producing various types of open-die forgings.
Capable of performing all open-die forging processes with user-friendly operation and high cost-effectiveness. Ideal for diverse forging applications.
Excellent pressure retention ensures superior energy output, enabling smaller hammers to handle heavy-duty forging tasks.
With fast striking speed and high frequency, it delivers superior productivity and excellent economic benefits.

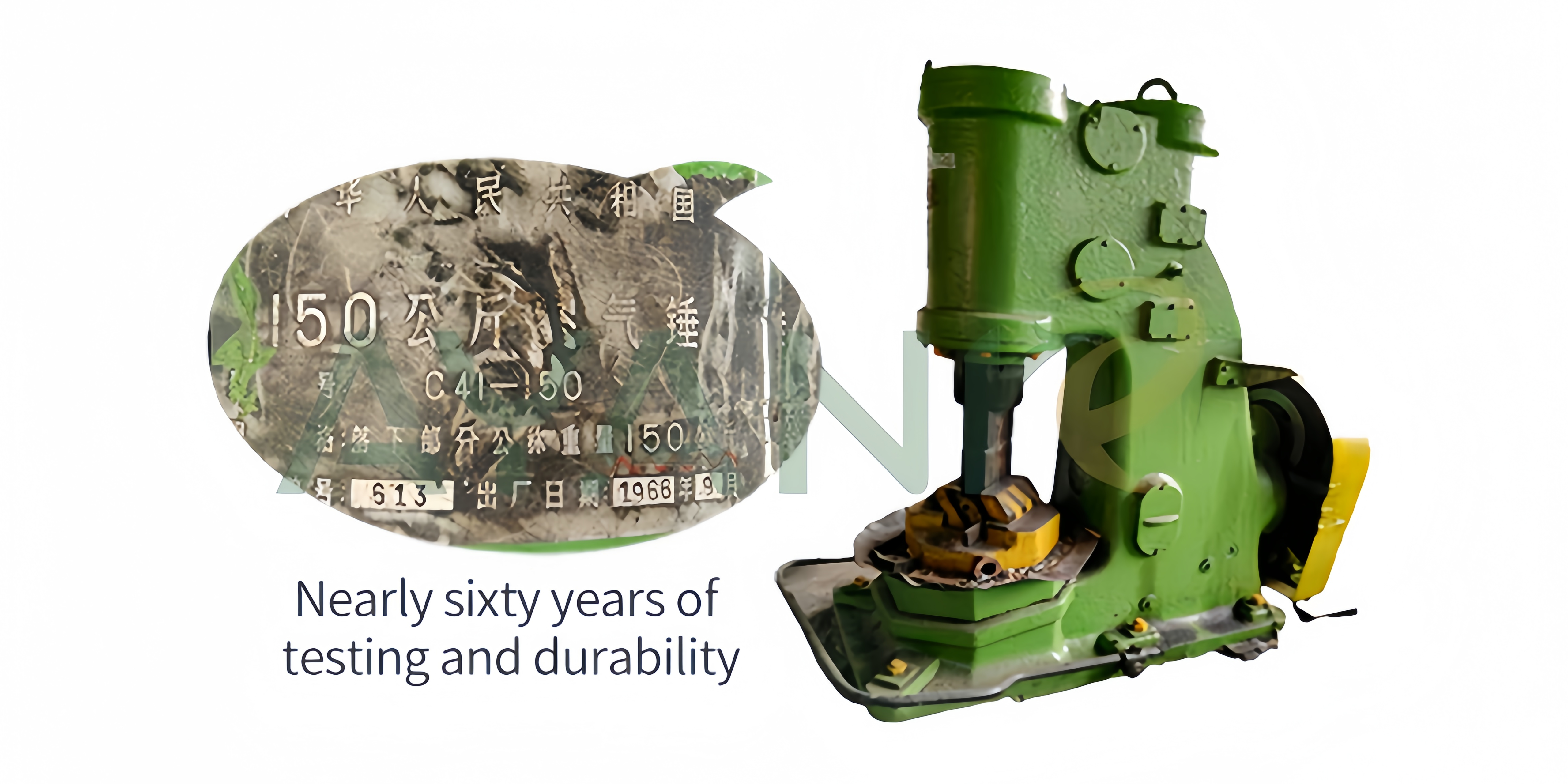

The L-type monoblock cast body provides simple structure, minimal routine maintenance, low upkeep costs, and reliable durability.
| Item | Unit | C41A-15 | C41A-25 | C41A-40(Two pieces) | C41A-40(one piece) | C41A-55(one piece) | C41A-75(Two pieces) | C41A-75(one piece) | C41A-150 | C41A-250 | C41A-400 | C41A-560 | C41A-750 | C41A-1000 | C41A-2000 |
| Weight of falling part | kg | 35 | 25 | 40 | 40 | 55 | 75 | 75 | 150 | 250 | 400 | 560 | 750 | 1000 | 2000 |
| Blow energy | kJ | 0.16 | 0.27 | 0.53 | 0.53 | 0.7 | 1 | 1 | 2.5 | 5.6 | 9.5 | 13.7 | 19 | 27 | 54 |
| Max. blow frequency | min-1 | 300 | 250 | 245 | 245 | 230 | 210 | 210 | 180 | 140 | 120 | 115 | 105 | 95 | 80 |
| Working area height | mm | 160 | 240 | 245 | 245 | 270 | 297 | 297 | 370 | 450 | 530 | 600 | 670 | 800 | 1000 |
| Distance from center line of hammer rod to frame | mm | 140 | 200 | 235 | 235 | 270 | 280 | 280 | 350 | 420 | 520 | 550 | 750 | 800 | 950 |
| Malleable blank-Square | mm | 30*30 | 40*40 | 52*52 | 52*52 | 60*60 | 65*65 | 65*65 | 130*130 | 145*145 | 220*220 | 270*270 | 270*270 | 290*290 | 350*350 |
| Malleable blank-Round | mm | Φ35 | Φ48 | Φ68 | Φ68 | Φ75 | Φ85 | Φ85 | Φ145 | Φ175 | Φ240 | Φ280 | Φ300 | Φ320 | Φ400 |
| Motor model | / | Y100L1-4-B3 | Y132S-6-B3 | Y112M-4 | Y132M1-6-B3 | Y160M-6 | Y132M-4 | Y132M-4 | Y180M-4 | Y180L-4 | Y200L-4 | Y280S-6 | Y280M-6 | Y315S-6 | Y315L2-6 |
| Motor power | kW | 2.2 | 3 | 4 | 4 | 7.5 | 7.5 | 7.5 | 18.5 | 22 | 30 | 45 | 55 | 75 | 132 |
| Machine weight-Frame | kg | 270 | 720 | 710 | 860 | 1300 | 2300 | 2500 | 3260 | 5000 | 8000 | 9800 | 17000 | 20000 | 48000 |
| Machine dimensions | mm | 1150*555*1515 | 1435*685*1725 | 1155*1200*1390 | 1615*765*1785 | 1830*845*1950 | 1570*930*1875 | 1570*1537*1875 | 2390*1085*2150 | 2639*1000*2540 | 2785*1100*2884 | 3464*1160*3157 | 3905*1370*3175 | 4020*1500*3652 | 5820*2140*4390 |
*Note:Above parameters are standard parameters and no announce if there are any changes.
