Characteristics and Applications of the Y13A Series Open Die Forging Hydraulic Press
2026-08-11
Y13A Series Open Die Forging Hydraulic Press are indispensable key equipment in the machinery manufacturing industry. In large-scale mechanical equipment used in industries such as aviation, shipbuilding, petroleum, chemical engineering, steel rolling, and military, large open-die forgings and large die forgings are required. These ultra-large special forgings are produced using large open-die forging hydraulic presses and large die forging hydraulic presses. Therefore, the quantity, variety, grade, and quality of forging equipment a country possesses is one of the important standards for measuring its industrial level and national defense strength.
Applications of the Y13A Series Open Die Forging Hydraulic Press

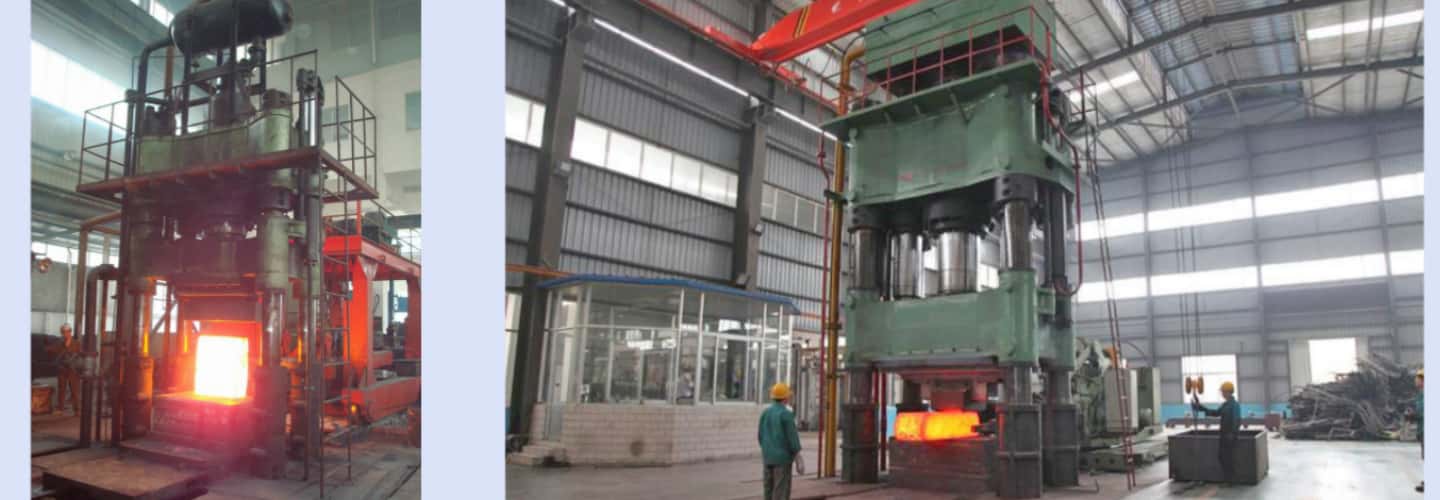

The Y13A series open-die forging hydraulic press from AYANK FORGING belongs to large open-die forging equipment, divided into ordinary open-die forging hydraulic presses and ring rolling preform dedicated hydraulic presses.
Ordinary open-die forging hydraulic presses are suitable for open-die forging and die forging of metal materials, with functions such as fast forging, normal forging, and pressure holding, meeting forging process requirements including upsetting, drawing out, punching, expanding, bending, and offsetting.
The ring rolling preform dedicated hydraulic press is equipped with an automatic billet centering device and a swing arm punch device, capable of quickly completing material upsetting and punching. It is mainly used in conjunction with CNC radial-axial ring rolling mills.
Main characteristics of the Y13A series open die forging hydraulic press:
1.Intelligent PLC operation control system, touch screen human-machine interface.
2.Remote indoor operation, low labor intensity, good working environment.
3.Convenient and quick upper die changing device, improving production efficiency.
4.Practical multi-point multi-stage pressure relief system, enhancing equipment stability.
1.The electrical system of the AYANK hydraulic press control system adopts human-machine interface input display and PLC control, with multifunctional and multi-directional real-time monitoring capabilities. It can achieve 1+1 linkage between the press and the manipulator. Equipped with manual adjustment, manual operation, and semi-automatic operation selection buttons, it can realize actions required by the press such as idle stroke, working stroke, return, and ejection. The operation is convenient and safe, with high production efficiency. Simple and lightweight operation with low labor intensity. By operating the joystick switch, downward movement, upward movement, forging, pressure holding, ejection, and other actions required by forging processes can be conveniently achieved.
2.The hydraulic system adopts a two-way cartridge valve integrated control system. Oil inlet and outlet adopt a two-stage control method. The main cylinder and system pipeline unloading adopt a three-stage hydraulic-electrical combined high-speed unloading (time only 0.3s), making the hydraulic press action fast, stable, and vibration-free.
3.The quick-change anvil device adopts a T-slot hanging method, allowing replacement of different upper anvil blocks.
4.The refilling system of the open-die forging hydraulic press adopts a large refill tank and a large filling valve built into the oil tank with zero-pressure refilling method, featuring fast and sufficient refilling, safety, and no leakage.
5.The movable crossbeam guide and cylinder guide of the AYANK forging hydraulic press have long lengths. The plunger and slider are connected using ball joints, providing strong anti-eccentric load capability and protecting the machine.
6.The movable crossbeam guide and cylinder guide of the AYANK forging hydraulic press have long lengths. The plunger and slider are connected using ball joints, providing strong anti-eccentric load capability and protecting the machine.
7.All control valve blocks are placed on the oil tank, with a low maintenance position, featuring convenient and safe maintenance.
8.The connections between the main plunger and the movable crossbeam, and between the return plunger and the lifting beam, all adopt ball joint connections, effectively solving the problem of eccentric loading.
9.Equipped with oil temperature, liquid level, cooling detection alarm devices, and hydraulic system pressure detection devices, providing multi-faceted detection and protection for the machine.
10.All parts and components of the AYANK FORGING hydraulic press have high safety factors, high strength, and long service life.
