Blacksmith, also known as the craftsman who forges iron or makes iron tools, is an ancient profession. They use iron as raw material and rely on a small hammer to create various production tools and daily necessities to support their families. The art of pure hand forging has a long history in Europe. European iron products are mainly artistic displays, requiring a great deal of time and energy from master ironsmiths. In contrast, Chinese iron products are practical in purpose, without considering artistry. Therefore, compared with European countries, China still lags far behind in the development of iron art culture.

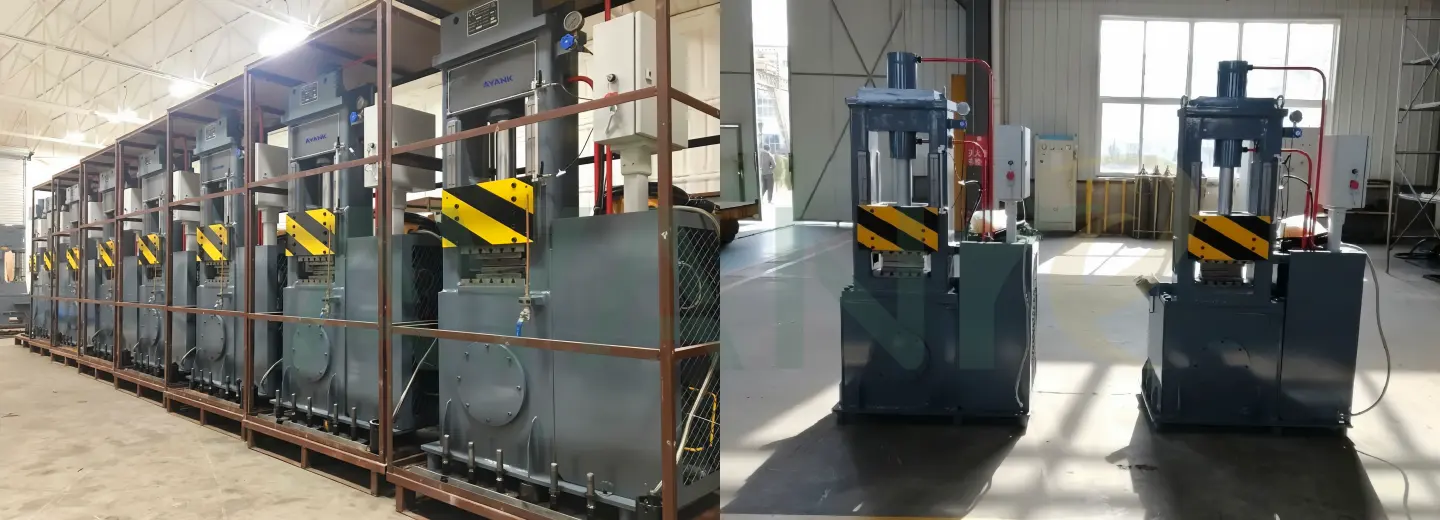

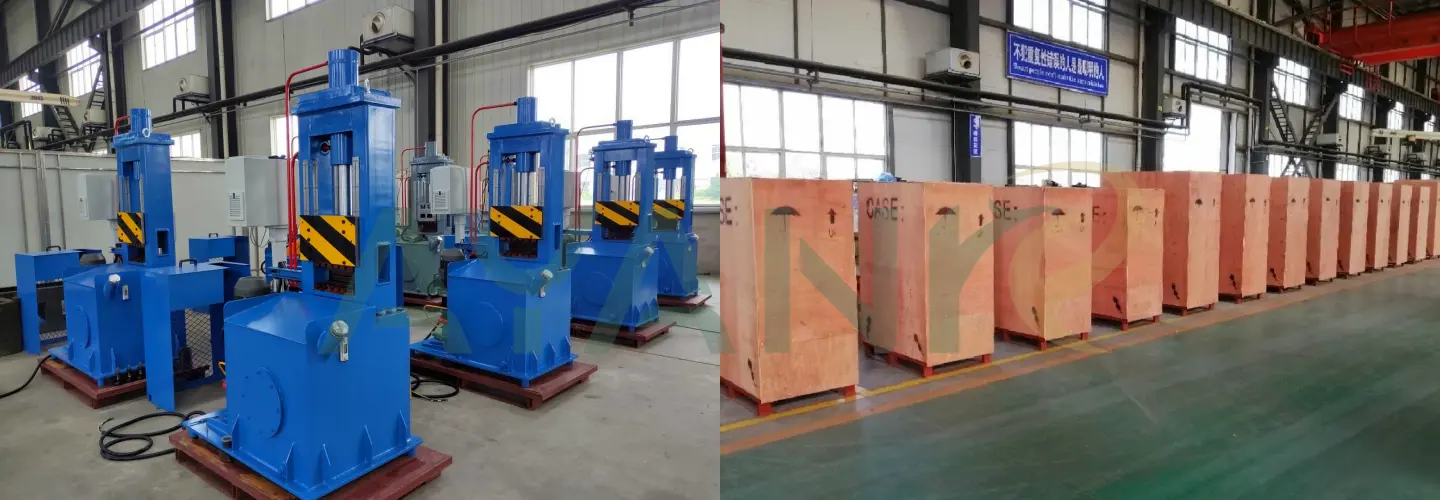

To meet the needs of outstanding iron art masters around the world, AYANK has developed a small hydraulic press. It is specially designed for iron art masters and small open die forging processes. It features small size, easy movement, low oil consumption, high forging efficiency, and low noise. Specifications range from 25 tons, 50 tons, to 100 tons models. It features small size, easy movement, low oil consumption, high forging efficiency, and low noise.
Press parameters:
| Item | Y04-25 | Y04-50 | Y04-150 (CNC Type) |
| Nominal pressure | 25 T | 50 T | 150 T |
| Stroke | 300 mm | 400 mm | 500 mm |
| Idle speed | 120 mm/s | 100 mm/s | 90 mm/s |
| Pressing speed | 10-20 mm/s | 8-18 mm/s | 6-15 mm/s |
| Max. forging range | 250x200 mm | 350x250 mm | 500x400 mm |
| Worktable size (LxW) | 600x400 mm | 800x500 mm | 1200x700 mm |
| Worktable height | 700 mm | 750 mm | 800 mm |
| Hydraulic cylinder pressure | 20 MPa | 22 MPa | 25 MPa |
| Hydraulic oil volume | 120 L | 180 L | 350 L |
| Main motor power | 7.5 kW | 11 kW | 22 kW |
| Overall dimensions (LxWxH) | 1500x900x2200 mm | 1800x1100x2500 mm | 2500x1500x3200 mm |
| Machine weight | 890 kg | 1900 kg | 9150 kg |

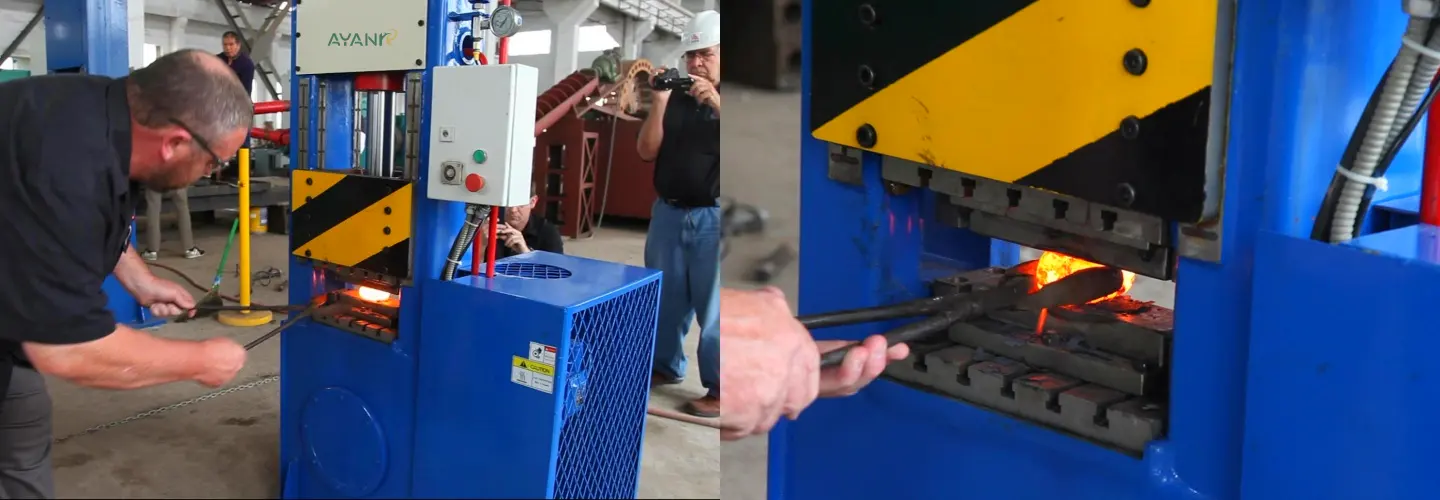

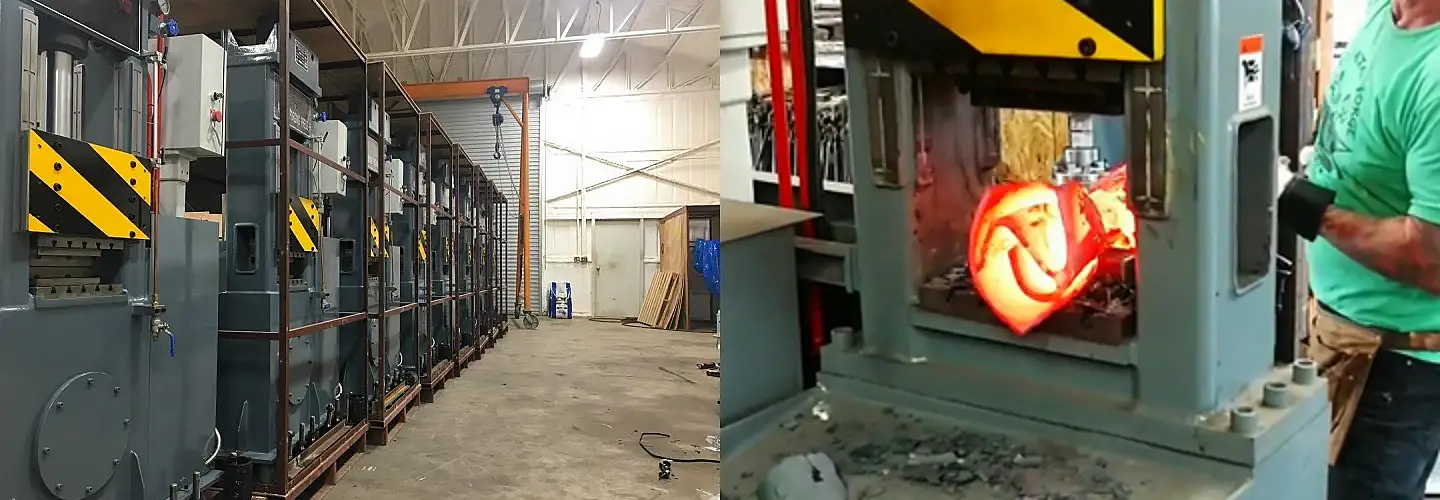

Application process of small blacksmith hydraulic press: suitable for stretching, upsetting, shearing, forge welding, twisting, bending, etc.
Application scope of small blacksmith hydraulic press:
25-ton small blacksmith hydraulic press – mainly used for forging products: Damascus steel knives, forging of small farm tools, processing of small forgings. First choice for knifemakers and small blacksmith shops.
Users: Independent knifemakers, small blacksmith shops, artistic forging studios, farm/estate private forging workshops.
50-ton and 150-ton small blacksmith hydraulic press – main force for farm tools, knives, and iron art.
Farm tool forging: axes, hoes, sickles, horseshoes and other medium and small farm tools.
Knife forging: kitchen knives, utility knives, hunting knives and other medium and large knives.
Iron art processing: railings, door decorations, decorative pieces and other artistic ironwork.
Metal processing field: cutting, bending, stretching and other processes for plates.
Users: Medium-sized blacksmith shops, farm tool processing factories, iron art workshops, medium and small forging workshops. The 50-ton is the most classic specification of "blacksmith hydraulic press", balancing power and size.
Main advantages of AYANK small blacksmith forging hydraulic press:
1.High speed.
2.Low forging noise.
3.Closed hydraulic system, steel hydraulic pipelines, no rubber hose bursting or fire, safer forging.
4.Upper and lower platens use "T" slotting. Easier to build specialized tools.
5.Timer shortens stroke time to faster, more efficient forging.
6.Stroke length 30mm.
7.Edge channels allow straightening of billets.
8.Industrial design foot pedal.
9.Heavy-duty high-strength industrial design.
