1 AYANK FORGING CNC hydraulic forging hammer Core Positioning

Core Positioning: To manufacture CNC hydraulic forging hammer that do not cut corners in processes, ensuring long-term reliability. Digital precision control is the core feature, making it the central forging equipment in automated precision forging production lines. It is adaptable to the demands of precision forgings and high-volume forging across multiple industries, benchmarking against German counterparts of the same level, with some large-tonnage products leading globally.

2 AYANK FORGING CNC hydraulic forging hammer Model Specifications and Core Parameters

Product Series: C92KA Series CNC Fully Hydraulic Die Forging Hammer

Equipment Specifications: C92KA Series, specification range: C92KA 16–625 kJ, covering: C92KA-16 kJ, C92KA-25 kJ, C92KA-31.5 kJ, C92KA-40 kJ, C92KA-50 kJ, C92KA-63 kJ, C92KA-80 kJ, C92KA-100 kJ, C92KA-125 kJ, C92KA-160 kJ, C92KA-200 kJ, C92KA-250 kJ, C92KA-320 kJ, C92KA-400 kJ, C92KA-450 kJ, C92KA-500 kJ, and C92KA-625 kJ, totaling 17 specifications, with support for customized adaptation.

Product parameters

item	unit.	C92KA-16	C92KA-25	C92KA-31.5	C92KA-40	C92KA-50	C92KA-63	C92KA-80	C92KA-100	C92K-125	C92K-160	C92K-200	C92K-250	C92K-320	C92K-400	C92K-450	C92KA-500	C92KA-625
Strike energy	kJ	16	25	31.5	40	50	63	80	100	125	160	200	250	320	400	450	500	625
Hammer mass	kg	1080	1700	2100	2700	3400	4350	5650	6900	8500	10000	12000	12800	14000	20000	22000	24000	28500
Rail spacing	mm	520	608	664	700	766	800	850	850	1000	1040	1000	1000	1000	1200	1200	1200	1300
Maximum strike frequency	min-1	90	90	85	85	85	80	75	75	70	55	55	50	45	40	40	40	33
stroke	mm	480-640	495-685	500-700	500-710	510-740	520-760	560-810	600-850	700-950	800-1000	900-1100	950-1150	950-1150	1100-1300	1150-1350	1150-1350	1150-1350
Main motor power	kW	37	55	55	90	55×2	55×2	90×2	90×2	110×2	90×3	90×4	90×4	110×4	110×6	110×6	110×6	110×6

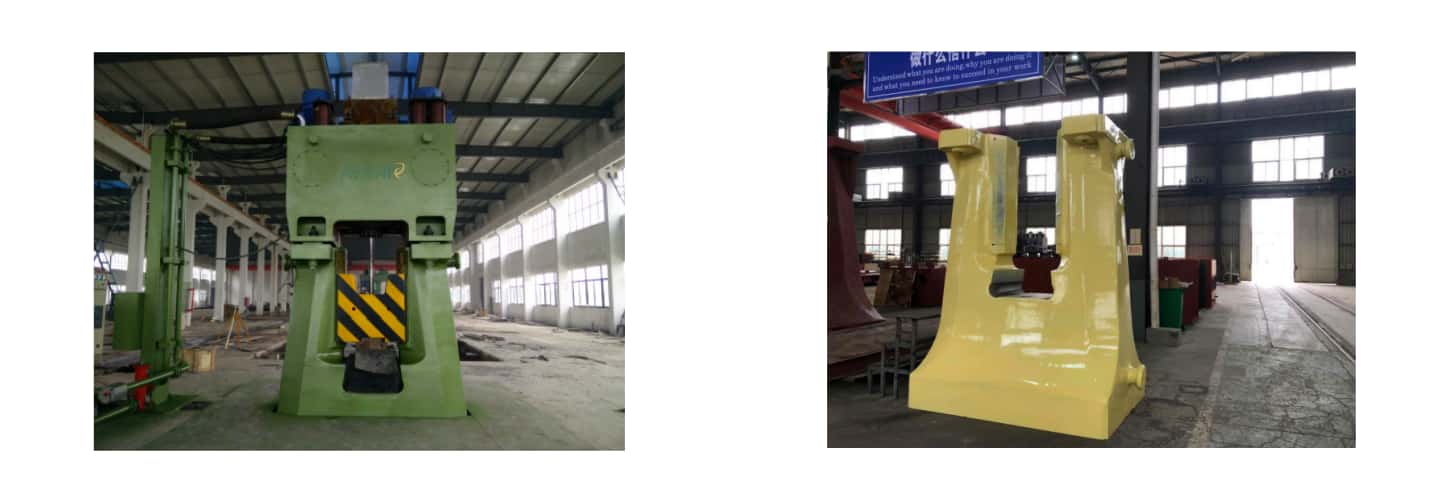

AYANK FORGING Globally Largest Tonnage Representative Hammer: C92KA-625 kJ (25-ton Hammer) (Core Advantage: As of December 2025, publicly available information indicates that no larger specification of the same type of CNC fully hydraulic die forging hammer has been identified globally).
• Key Precision Parameters: Repetitive impact energy accuracy ±1.5%, exceeding national standards and reaching German equivalent levels; forging dimensional error 0.2 mm, forging weight error 0.3%.

3 AYANK FORGING CNC hydraulic forging hammer Core Definition and Application Scenarios Overview

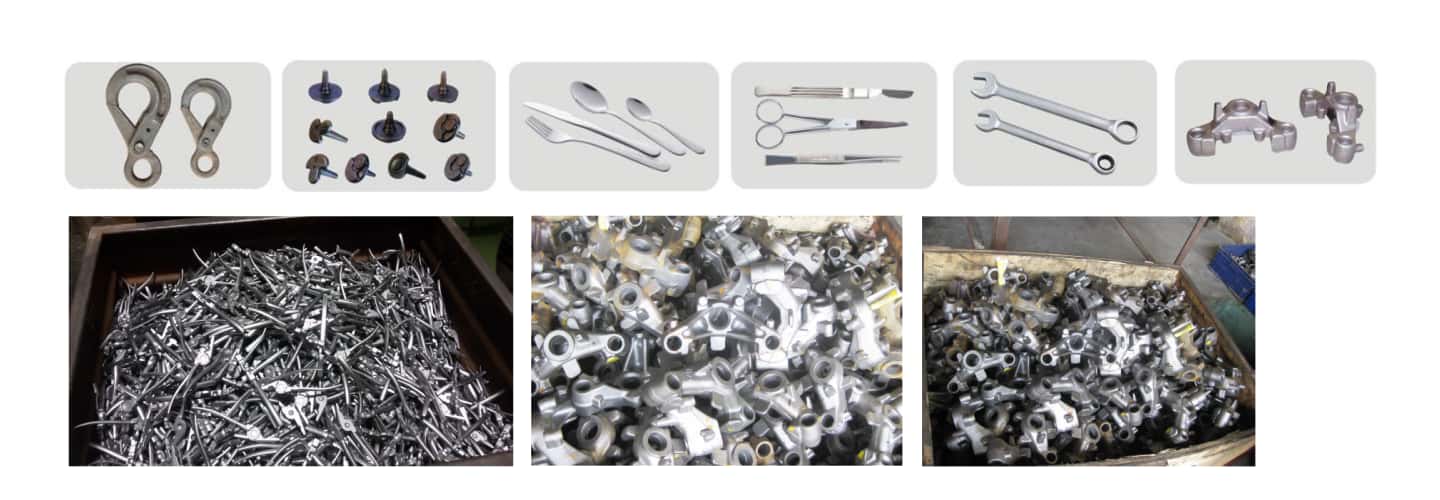

The AYANK FORGING C92KA series CNC fully hydraulic die forging hammer adopts a spool valve structure. Its core advantage lies in the digital precision control of impact energy and impact processes, featuring high forging precision, fast impact frequency, high production efficiency, compact mechanical structure, and a stable and reliable hydraulic system. It is suitable for forging thin-walled parts, complex-shaped parts that are difficult to fill mold cavities, thin-ribbed parts, and forgings with strict tolerance requirements. It is widely used in high-volume, multi-variety production across industries such as automotive, motorcycles, and engineering machinery, while also being adaptable for precision forging of high-density complex-shaped parts in the aerospace industry. It serves as the core forging equipment in automated precision forging production lines.

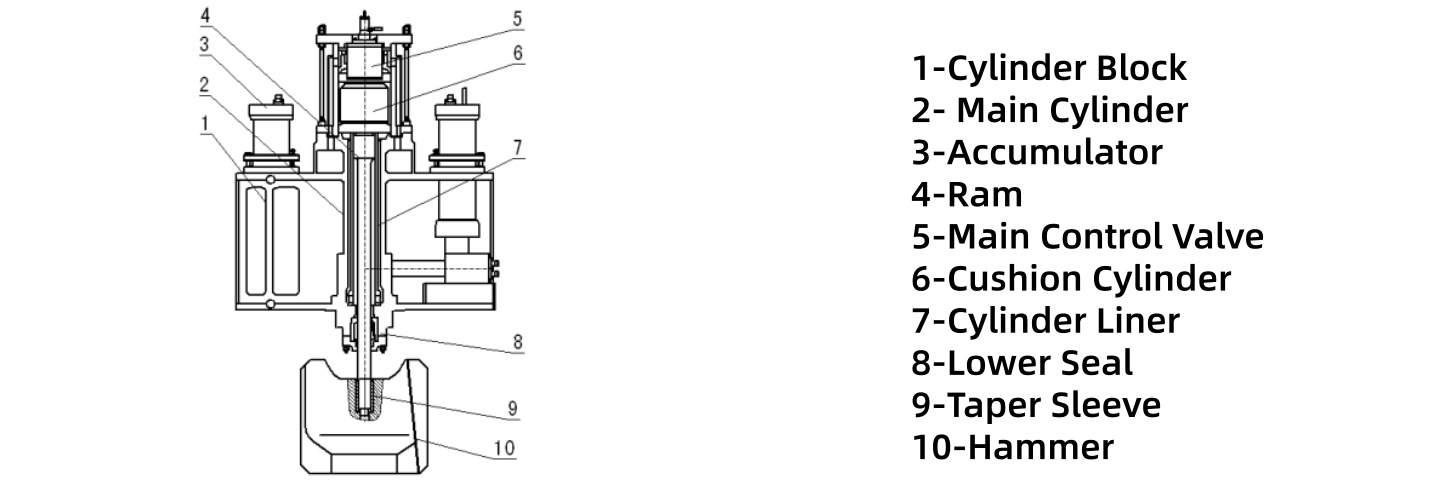

4 Hydraulic Principle of AYANK FORGING CNC hydraulic forging hammer

4.1 Basic Principle

The motor-pump-accumulator transmission mode is adopted. The lower chamber of the oil cylinder is always connected to the accumulator (in a constant pressure state), and the control system performs single-chamber control on the upper chamber. After the upper chamber inlet valve (striking valve) opens, high-pressure oil from the pump and accumulator, along with high-pressure oil introduced from the lower chamber via the differential circuit, jointly enters the upper chamber, enabling the hammer head to accelerate downward for striking. Once the upper chamber is depressurized, the hammer head immediately retracts rapidly. Precise control of the striking energy is achieved by adjusting the closing time of the striking valve.

4.2 Key Operational Process

• Hammer Lifting State: After the main oil pump starts, it delivers oil to the accumulator, driving the hammer head to lift. The lower chamber of the main oil cylinder is always connected to the accumulator, keeping the hammer head at the upper limit (hammer lifting state).
• Striking State: By controlling the closing time of the striking valve, the striking energy is adjusted. Oil from the lower chamber returns to the upper chamber, and together with high-pressure oil from the pump and accumulator, completes the strike. Multiple overlapping strikes can be achieved (if one strike is insufficient, multiple strikes can be performed).
• Hammer Hovering State: The pressure sensor controls the unloading valve to open, allowing the pump to operate under no load. The accumulator maintains pressure, keeping the hammer head in a safe upper position. The system oil temperature does not rise, achieving energy and electricity savings.

4.3 Core Advantages of the Hydraulic System

Main Striking Valve: Utilizes a spool valve structure with high directional sensitivity and good sealing. It features top-mounted integrated assembly with no pipeline connections, reducing the risk of oil leakage and enhancing system reliability.
• Overall Design: The hydraulic system has a high degree of integration, with a reasonable oil circuit layout and no redundant pipelines. It exhibits strong contamination resistance, stable operation, and convenient maintenance.
