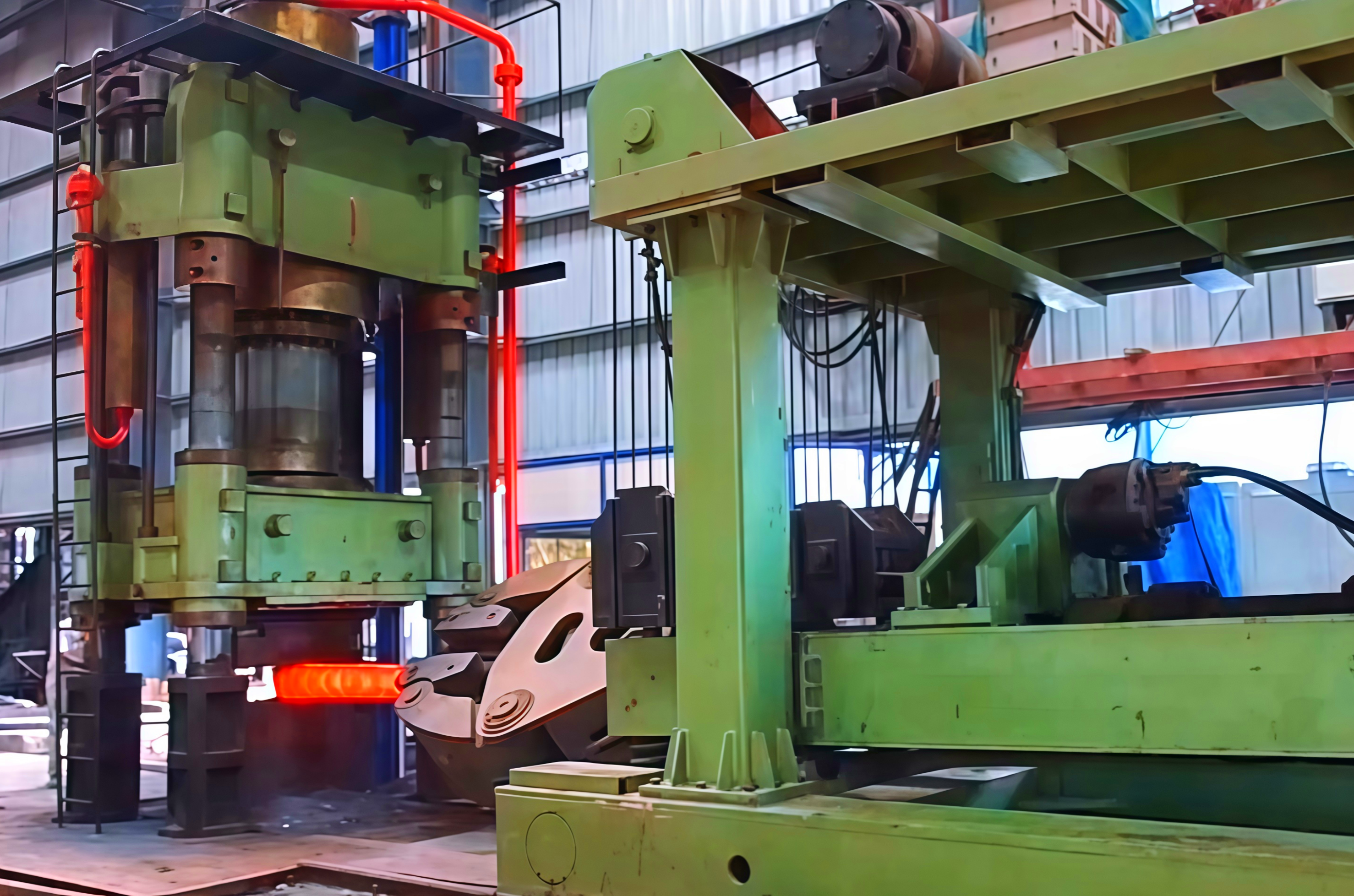

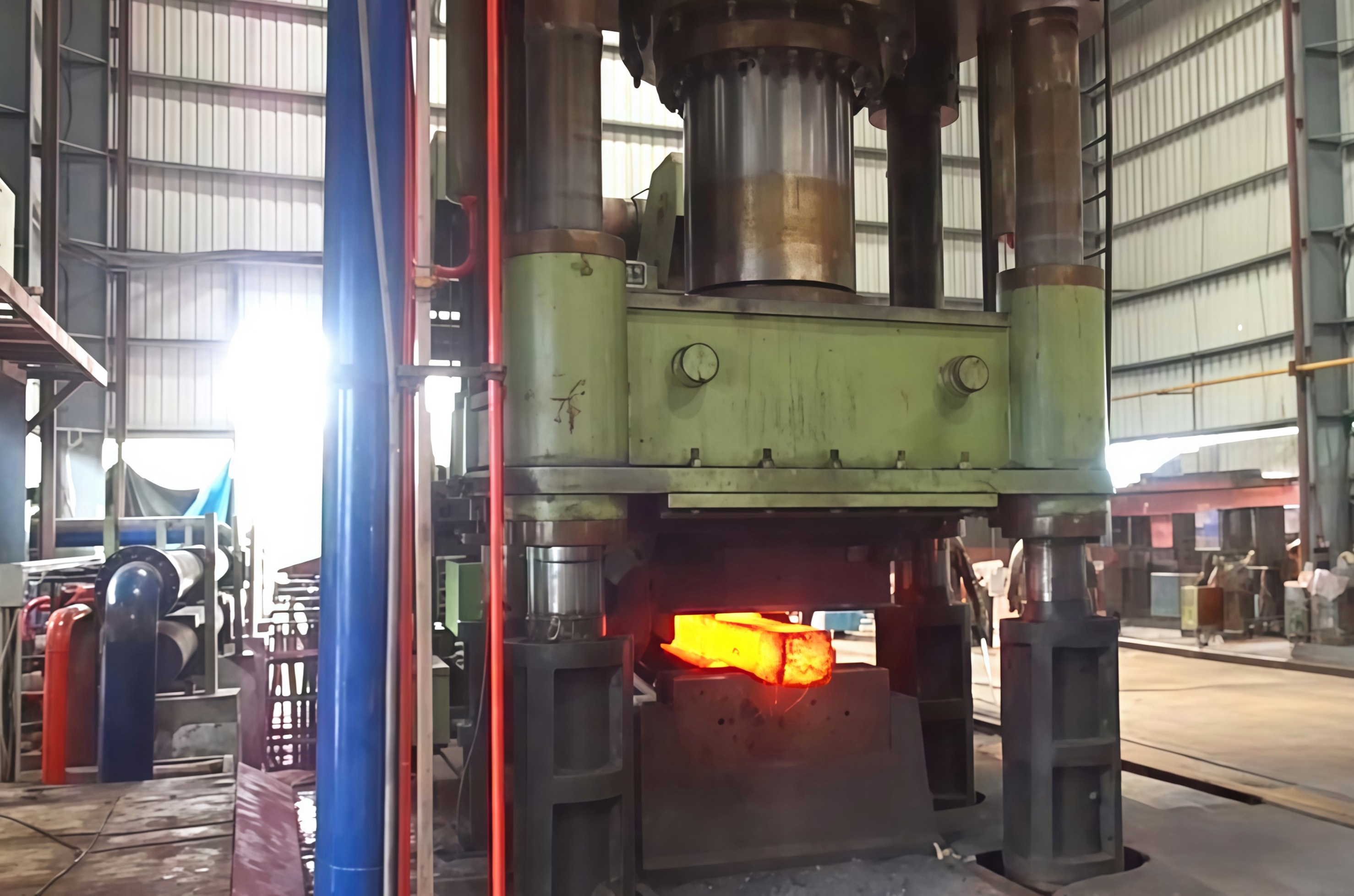

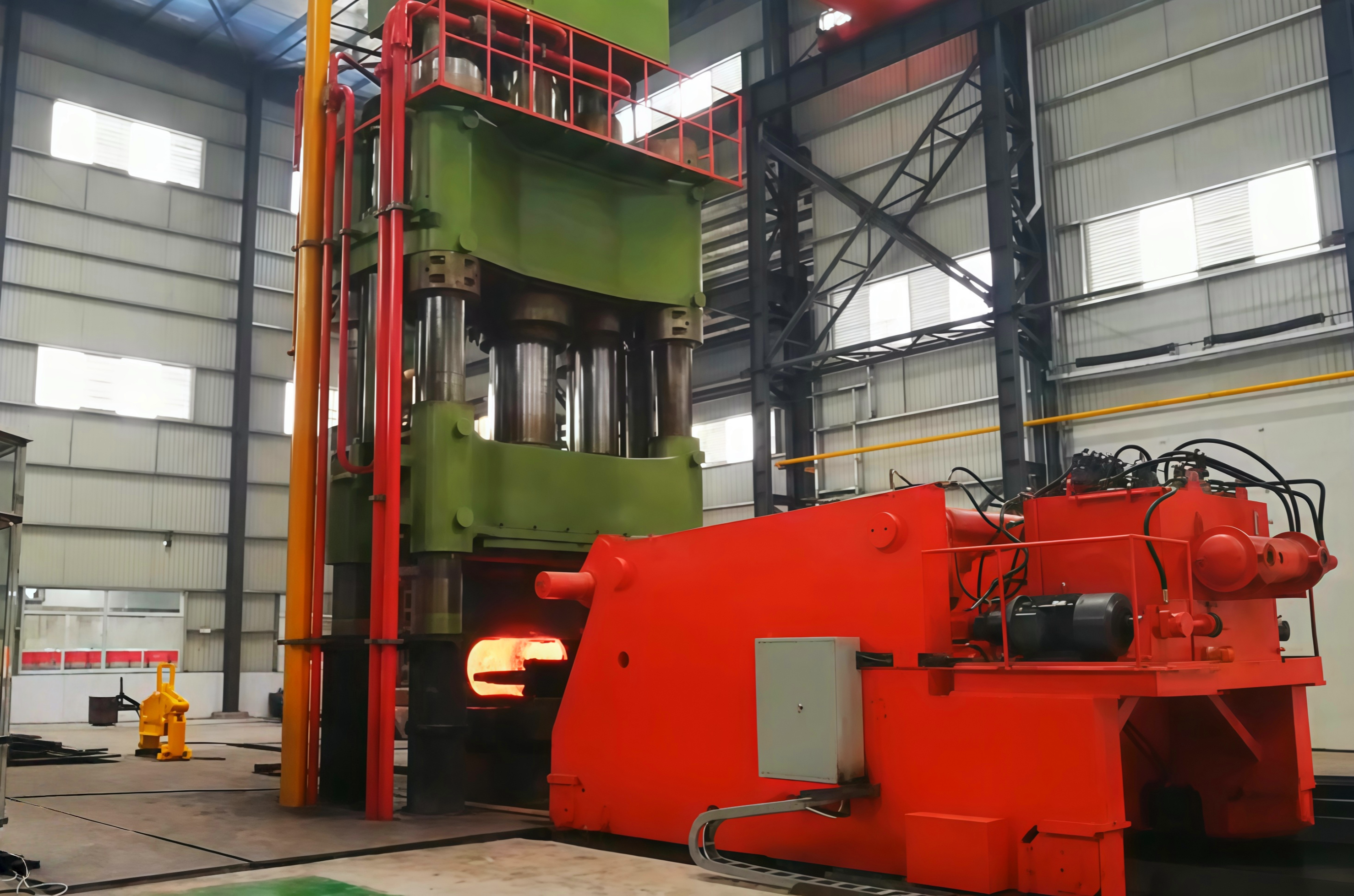

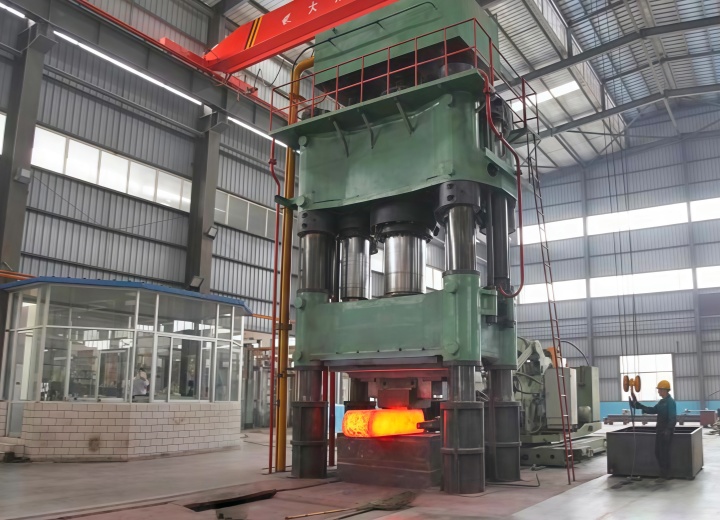

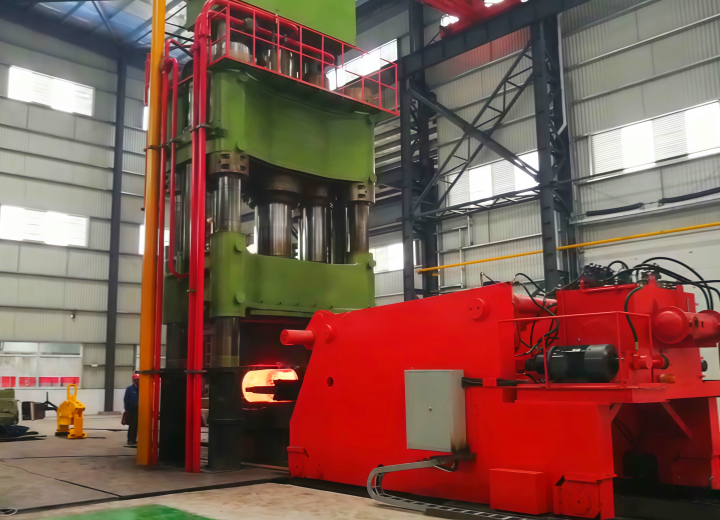

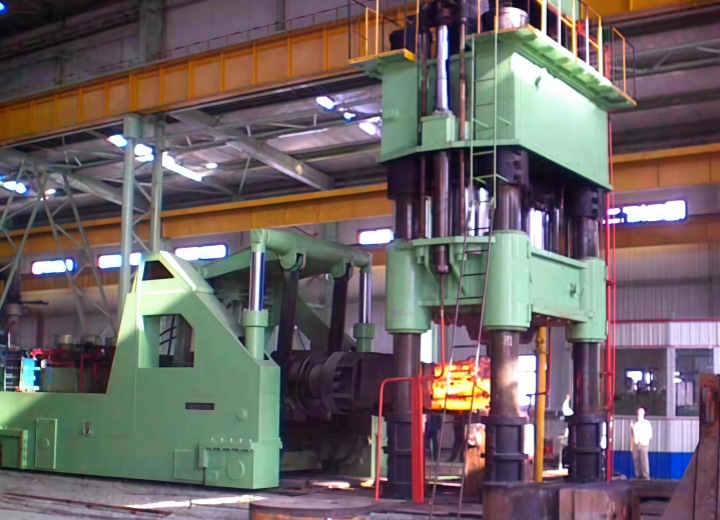

Y13A Series Open Die Hydraulic Forging Presses is suitable for free forging of metal materials and loosetooling forging. It has the functions of fast forging, constant forging, pressure maintaining, etcand can meet the requirements of forging processes, such as upsetting, drawing, punchingenlarging, bending, and staggered shifting.
Enables multi-functional interaction and omnidirectional real-time monitoring with user-friendly operation and reduced labor intensity.
Features strong process adaptability and stable hydraulic performance, equipped with quick die-change devices to maximize production line efficiency while reducing costs.
he integrated hydraulic system ensures fast and smooth press movements, complemented by a practical multi-point multistage pressure-release system for exceptional operational stability.
Incorporates multiple safety detection mechanisms providing comprehensive monitoring, safety alerts, maintenance reminders, and protective functions.
| Item | Unit | Y13A-800 | Y13A-1250 | Y13A-1600 | Y13A-2000 | Y13A-2500 | Y13A-3150 | Y13A-4000 | Y13A-5000 | Y13A-6000 |
| Nominal pressure | MN | 8 | 12.5 | 16 | 20 | 25 | 31.5 | 40 | 50 | 60 |
| System pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Cylinder diameter | mm | Ф640 | Ф800 | Ф740+2*Ф380 | Ф740+2*Ф480 | Ф800+2*Ф560 | Ф800+2*Ф700 | Ф900+2*Ф800 | 3*Ф920 | Ф1350+2*Ф800 |
| Clearance distance | mm | 2300 | 2600 | 2900 | 3100 | 3300 | 3800 | 4000 | 4600 | 5300 |
| Slide stroke | mm | 1000 | 1200 | 1400 | 1500 | 1600 | 1800 | 2000 | 2200 | 2500 |
| Column center distance | mm | 2200*1000 | 2200*1300 | 2600*1400 | 2800*1500 | 3200*1600 | 3600*1900 | 4400*2100 | 4800*2200 | 4650*2300 |
| Column diameter | mm | Ф260 | Ф300 | Ф340 | Ф360 | Ф420 | Ф500 | Ф570 | Ф600 | Ф650 |
| Return speed(adjustable) | mm/s | 300 | 300 | 300 | 250 | 250 | 250 | 200 | 200 | 200 |
| Working speed | mm/s | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Down speed(adjustable) | mm/s | 300 | 300 | 300 | 250 | 250 | 250 | 200 | 200 | 200 |
| Size of travelling worktable | mm | 2500*1400 | 3200*1500 | 3500*1600 | 3700*1700 | 5000*1900 | 5000*2300 | 6000*2400 | 6000*2800 | 7000*3000 |
| Stroke of travelling worktable(L&R) | mm | 1000 | 1400 | 1600 | 1800 | 2000 | 2500 | 2500 | 3000 | 3000 |
| Speed of travelling worktable(adjustable) | mm/s | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Max. eccentricity | mm | 100 | 150 | 180 | 200 | 225 | 250 | 275 | 325 | 400 |
| Max. ingot(drawing/upsetting) | ton | 2.5/5 | 5/8 | 8/15 | 12/20 | 20/40 | 25/45 | 35/65 | 40/80 | 60/130 |
| Main motor power | kW | 4*110 | 6*110 | 7*110 | 9*110 | 12*110 | 15*110 | 20*110 | 24*110 | 28*110 |
| Height above floor | mm | 6700 | 8000 | 8500 | 9000 | 9500 | 10500 | 11500 | 12500 | 13500 |
*Note:Above parameters are standard parameters and no announce if there are any changes.
