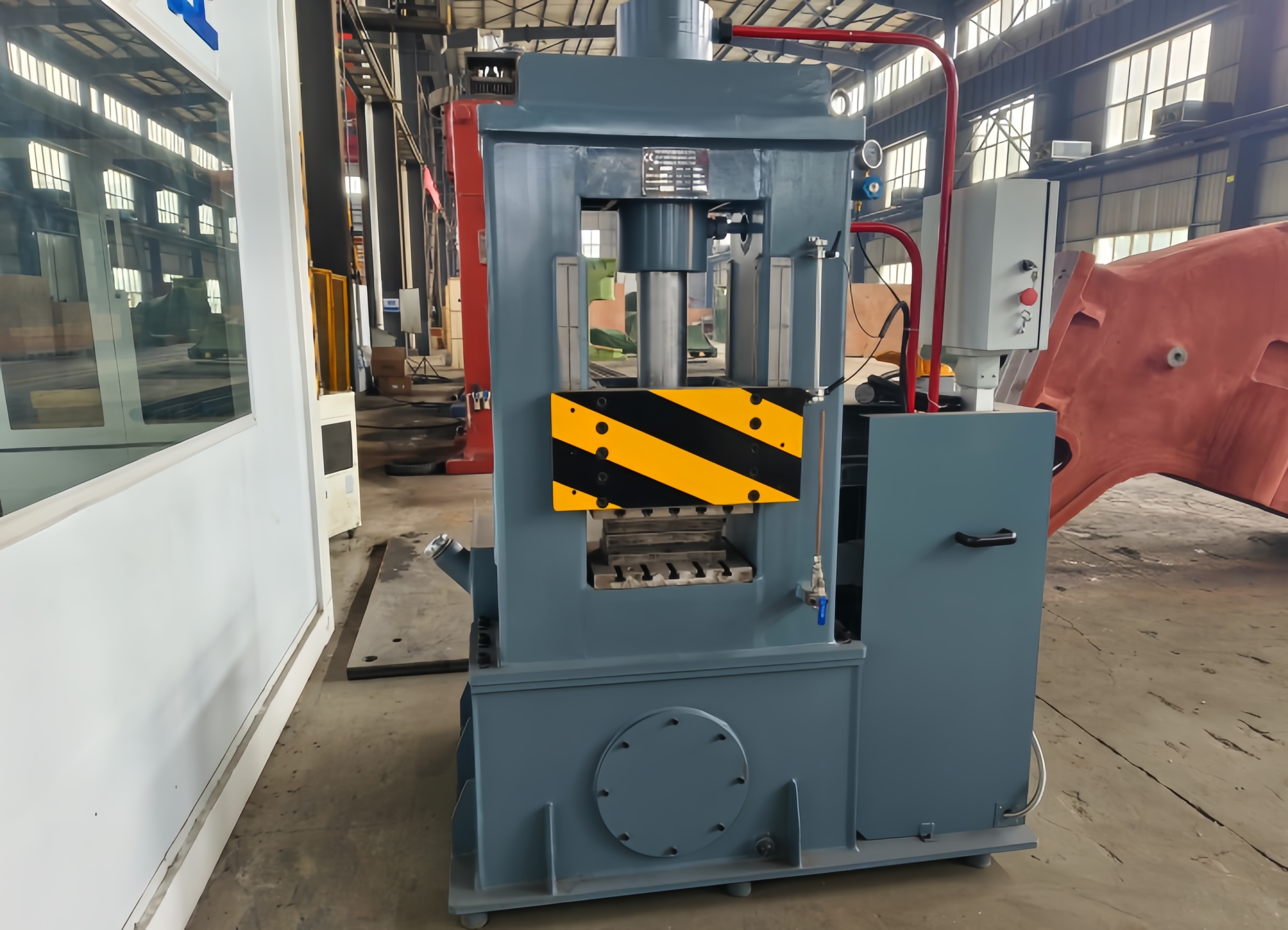

Small Hydraulic Press

Send Email Inquiry Now

Name	Unit	Y04-25	Y04-50	Y04-150 (CNC Type)
Nominal Force	T	25	50	150
Ram Stroke	mm	300±5	300±5	400±5
Empty Stroke Speed (Fast Down)	mm/s	≥40	≥50	≥150
Empty Stroke Speed (Slow Down)	mm/s	≥20	≥25	≥75
Maximum Pressing Speed	mm/s	≤20	≤20	≤20
Empty Stroke Speed (Fast Up)	mm/s	≥60	≥55	≥100
Maximum Forging Range	mm	300×400	380×400	600×600
Worktable Size	mm	300×200	380×300	600×400
Worktable Height	mm	900±20	900±20	700±20
Working Hydraulic Cylinder Pressure	MPa	≤25	≤25	≤25
Hydraulic Oil (46# Anti-wear) Volume	L	240	450	450
Main Motor Power	kW	4	7.5	30
Overall Dimensions - Left-Right	mm	1200	1550	2850
Overall Dimensions - Front-Rear	mm	765	1110	1600
Overall Dimensions - Height Above Ground	mm	2080	2140	4080
Equipment Weight	kg	890	1900	9150
