Introduction

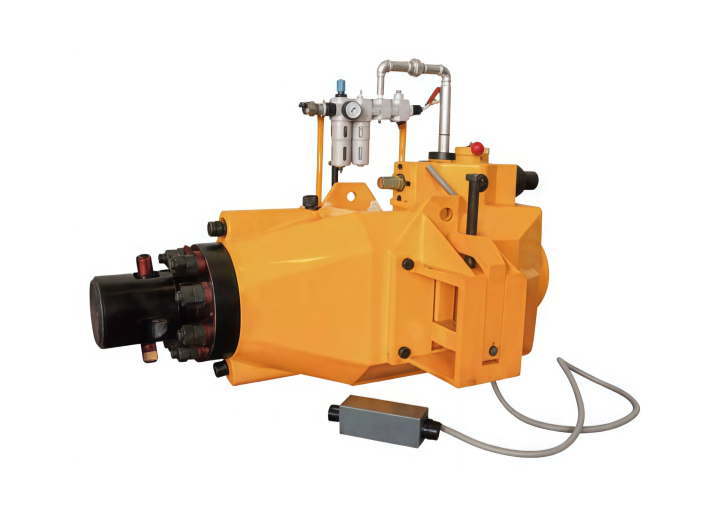

Key driver is used to install and remove wedges of forging hammer. Kinetic energy is provided by compressed air, and strike energy is accurate. It can exert accurate installation force on the die wedges. It is used together with a forklift, safe, reliable and fast.
| Item | Unit | DXT-100 | DXT-200 | DXT-400 | DXT-800 |
| Max. strike energy | kJ | 1 | 2 | 4 | 8 |
| Compressed air connection | G | 1" | 1" | 1" | 1½ ″ |
| Max. wedge size | mm | 60 * 80 * 500 | 80 * 120 * 1000 | 100 * 200 * 2000 | All the wedges |
| Working pressure | MPa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Max. piston stroke | mm | 400 | 500 | 600 | 700 |
| Weight (with bracket) | kg | 860 | 1560 | 2860 | 5500 |
| Suitable for hammer capacity | kJ | 0-25 | 25-75 | 75-150 | 150-500 |
