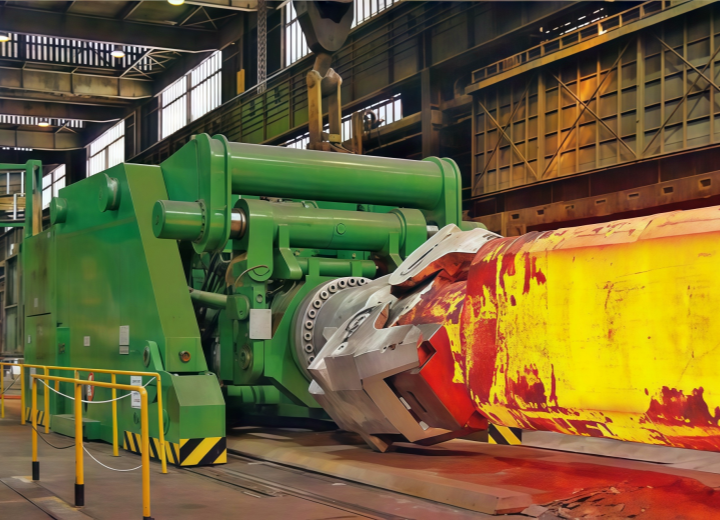

CNC forging manipulator is fully hydraulic drive type with lateral shift function, which can be operated by manual, semi-auto, auto,able to work with open die hydraulic forging press through digital input to realize linkage operation. It is used to hold forgings in forging production under working with main forging machine, which greatly increases the productivity and forging quality, reduces labor intensity, realizes forging production mechanization.
| Item | Unit | T31DYB-8 | T31DYB-10 | T31DYB-15 | T31DYB-20 | T31DYB-30 | T31DYB-40 | T31DYB-50 | T31DYB-60 | T31DYB-80 | T31DYB-100 | T31DYB-120 |
| Nominal loading force | kN | 80 | 100 | 150 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 |
| Max. holding torque | kN.m | 200 | 250 | 400 | 500 | 800 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 |
| Max. holding diameter range | mm | 170-1000 | 170-1030 | 170-1100 | 200-1200 | 280-1300 | 165-1600 | 175-1700 | 175-1860 | 210-2100 | 250-2200 | 300-2300 |
| Camp head rotating speed | r.p.m | 20 | 20 | 18 | 18 | 16 | 16 | 14 | 14 | 13 | 12 | 12 |
| Min. clamp horizontal height | mm | 800 | 800 | 800 | 900 | 900 | 900 | 1090 | 1250 | 1350 | 1400 | 1500 |
| Clamp vertical stroke | mm | 1000 | 1000 | 1500 | 1800 | 1800 | 1800 | 1900 | 2000 | 2000 | 2200 | 2200 |
| Clamp up/down pitch angle | ° | 7/9 | 7/10 | 7/11 | 7/12 | 7/13 | 7/14 | 7/15 | 7/16 | 7/17 | 7/18 | 7/19 |
| Clamp lateral shift distance | mm | ±150 | ±150 | ±180 | ±200 | ±200 | ±200 | ±250 | ±300 | ±300 | ±300 | ±300 |
| Clamp swing shift distance | ° | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 |
| Manipulator travelling speed | m/min | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Rail distance | mm | 2500 | 2800 | 3000 | 3300 | 3600 | 3600 | 4000 | 4400 | 5000 | 5300 | 5700 |
