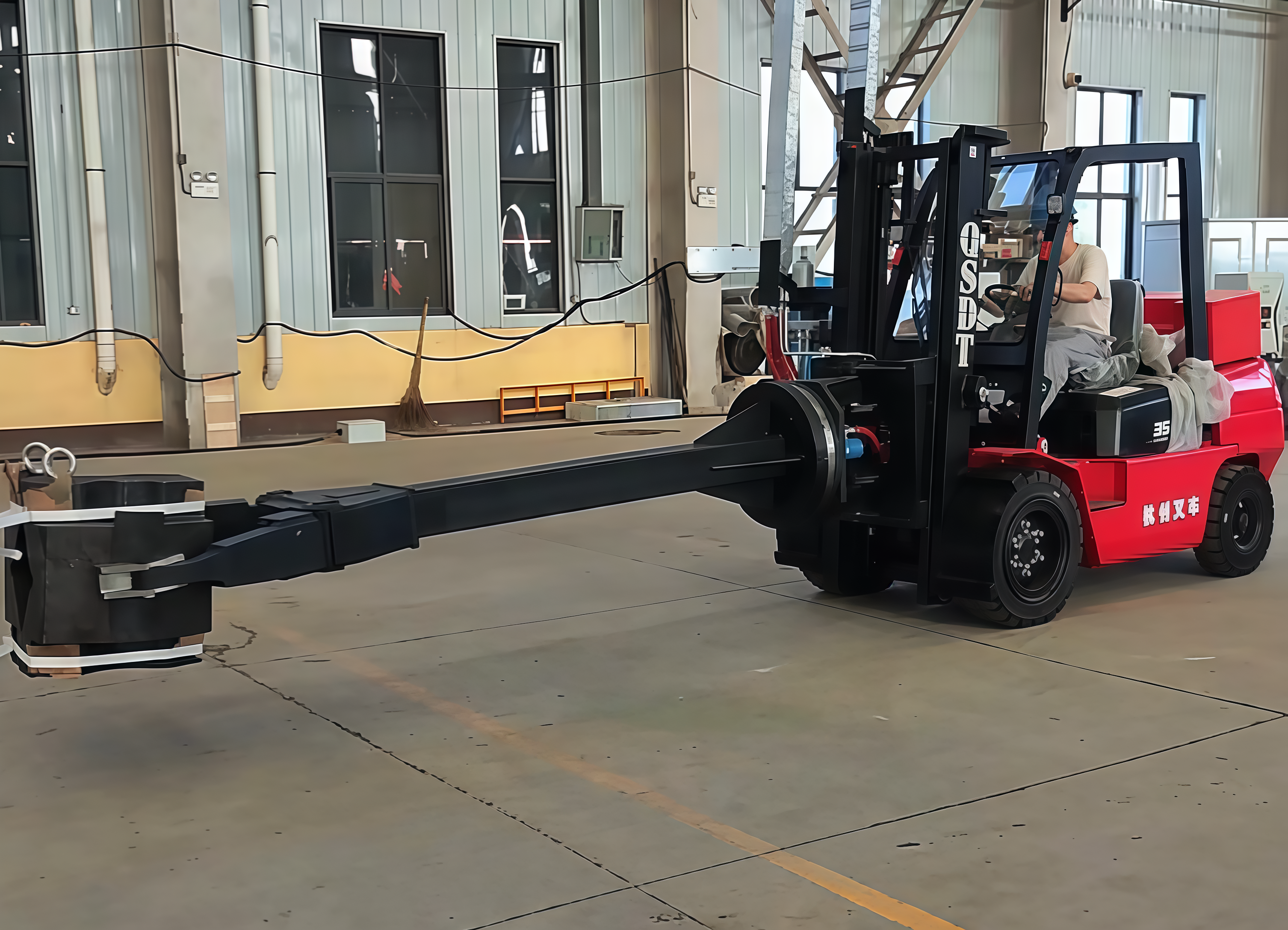

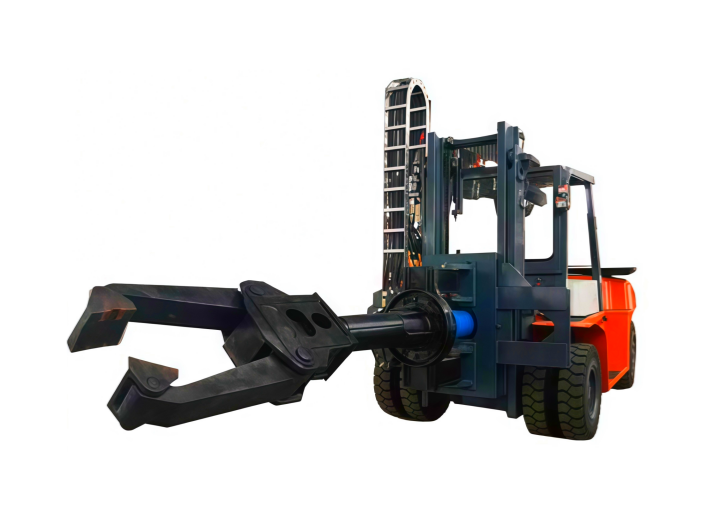

The mobile forging charger is mainly used for working piece's loading and charging. also used for transportation of working piece. This mobile forging charger is able to charge work piece from ground, load it into fumace, after heated, charge it from furnace to forging hammer, forging press or ring rolling machine, main forging equipment etc.
| Item | Unit | ZHJW-0.5 | ZHJW-1 | ZHJW-2 | ZHJW-3 | ZHJW-5 | ZHJW-6 |
| Nominal loading weight | ton | 0.5 | 1 | 2 | 3 | 5 | 6 |
| Loading diameter range | mm | 80-400 | 50-600 | 80-700 | 100-850 | 10-1000 | 100-1000 |
| Min. height of clamp rod | mm | 500 | 500 | 700 | 800 | 1000 | 1000 |
| Max. height of clamp rod | mm | 1500 | 1500 | 1600 | 1600 | 2000 | 2000 |
| Travelling speed | km/h | 18 | 18 | 26 | 26 | 28 | 28 |
| Clamp rod up/down pitch angle | ° | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 |
| Clamp rod rotating angle | ° | 360 | 360 | 360 | 360 | 360 | 360 |
| Clamp front tip to front wheel center distance | mm | 3100 | 3800 | 3800 | 3800 | 3800 | 3800 |
