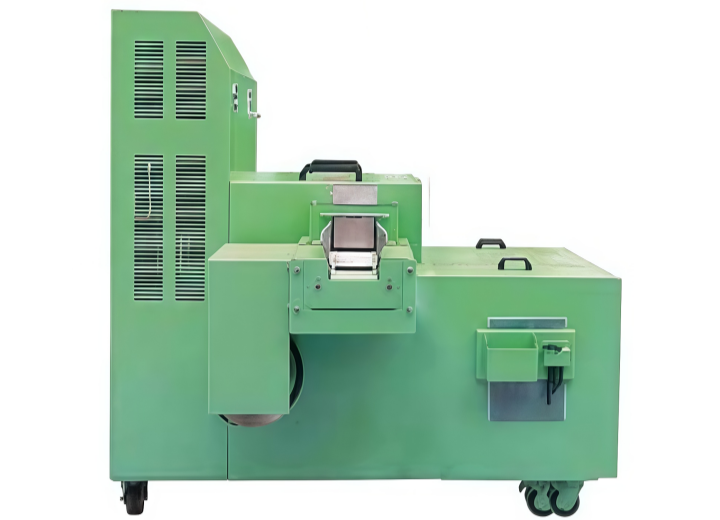

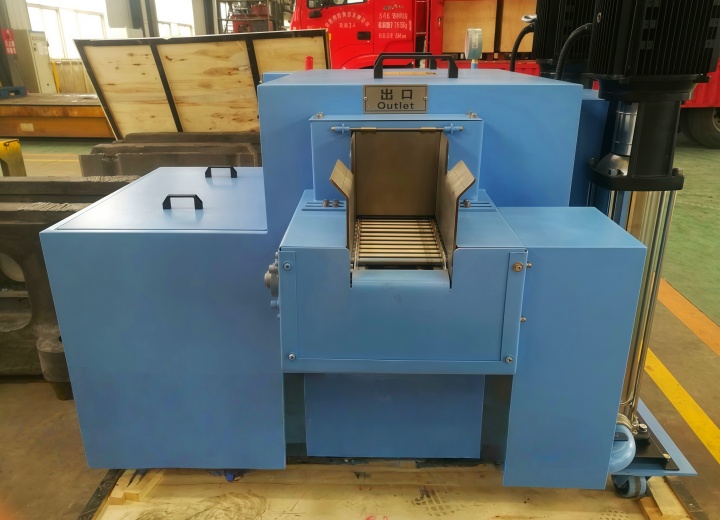

QXJ SERIES Descaling Machine

Introduction

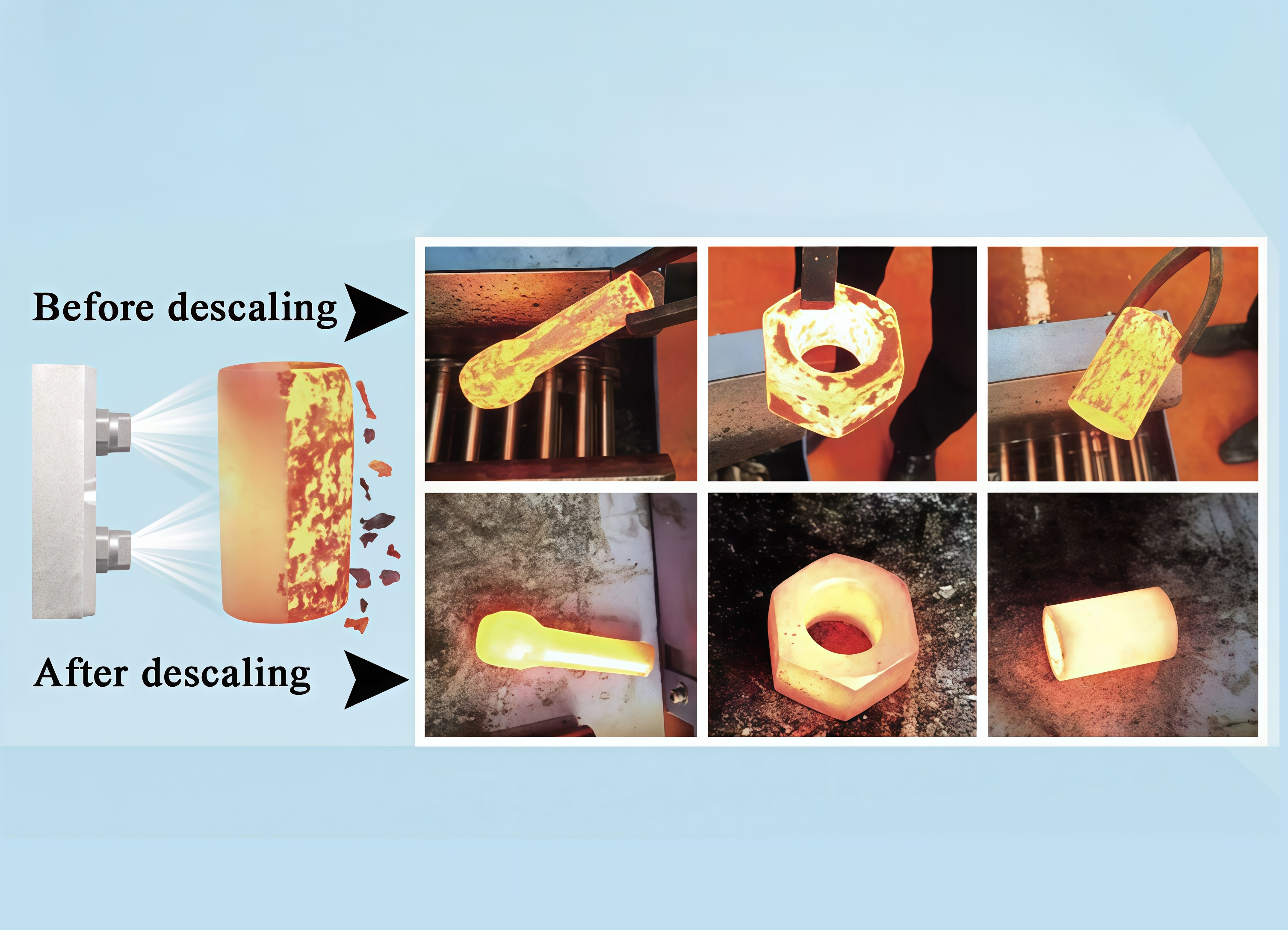

Descaling machine is also called oxide scale cleaning machine. It adopts a stainless steel skewer chain design and has a multi-layer filtration function to achieve 360° all-round cleaning of oxide scales and effectively collect oxide scales. It has high removal efficiency and good effect, and can remove more than 95% scales from electric furnace oxidation. It is an necessary supporting equipment for forging line.

Features

Solve problem of furnace oxide scale and improve surface quality of forgings

Improve qualified product rate and die life

Reduce raw material consumption and production cost

Realize automatic production

Send Email Inquiry Now

Product Features

Product parameters

Item	Unit	QXJ-80-100-15	QXJ-80-100-20	QXJ-80-160-20	QXJ-80-100-28	QXJ-80-160-28	QXJ-120-160-20	QXJ-120-220-20	QXJ-100-100-30	QXJ-150-160-30
Work pressure	MPa	1.2-1.6	1.6-2.0	1.6-2.0	2.4-2.8	2.4-2.8	1.6-2.0	1.6-2.0	2.8-3.5	2.8-3.5
Bar diameter	mm	Φ15-60	Φ15-80	Φ15-80	Φ15-80	Φ15-80	Φ60-120	Φ60-120	Φ60-100	Φ80-150
Size after blanking	mm	100×80	100×80	160×80	100×80	160×80	160×120	220×120	100×100	160×150
Number of nozzles	pc	12	18	18	18	18	24	24	18	24
Power	kW	4.5	8.25	8.25	19.5	19.5	11.75	11.75	15.75	22.75
Dimensions	mm	1220×1150×1300	1420×1550×1500	1420×1550×1500	1420×1550×1900	1420×1550×1900	1630×1550×1570	1630×1550×1570	1630×1610×1500	1630×1610×1610
