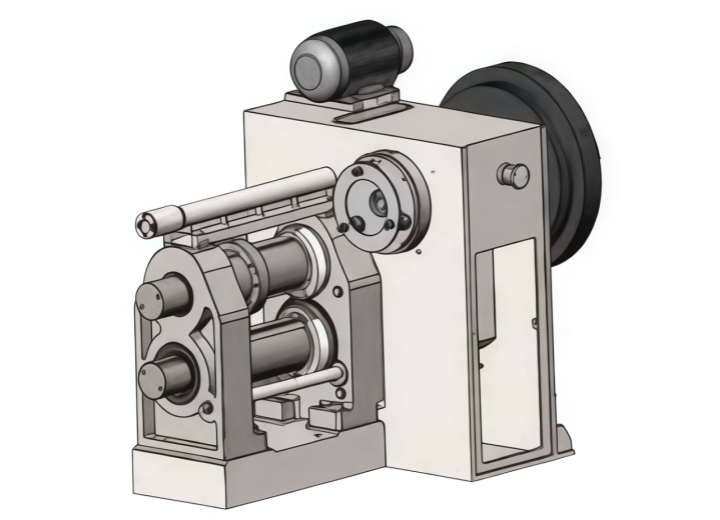

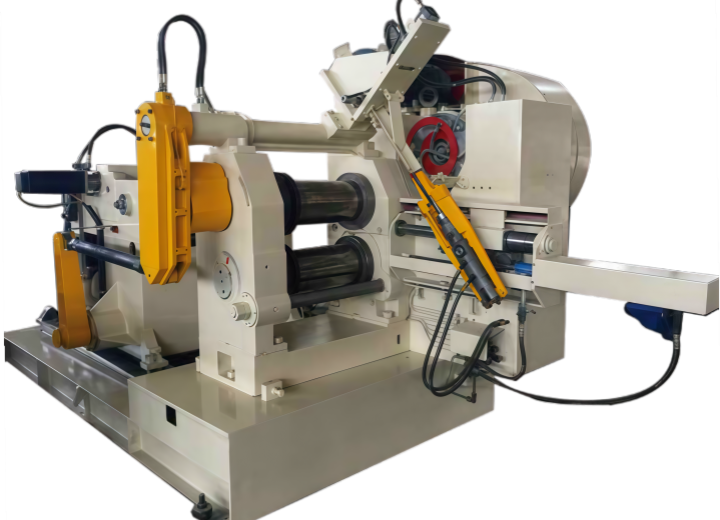

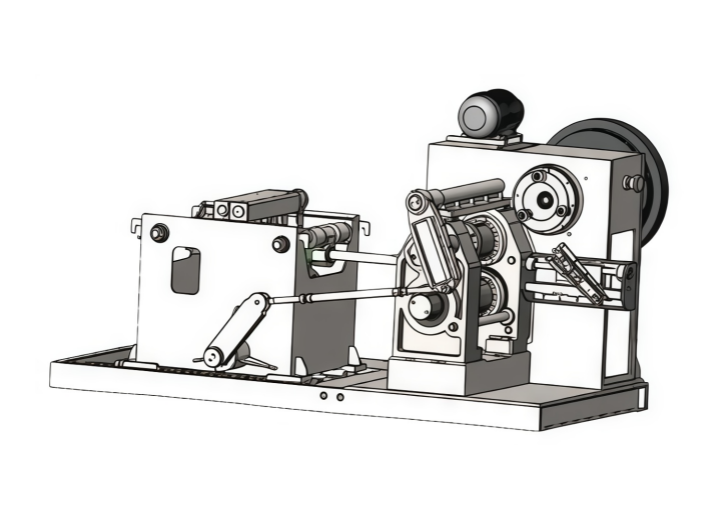

ZGD series automatic roll forging machine is mainly used for the pre-forging of closed die forging, it is also used for forming of final forging. ZGD series automatic forging roll machine can be composed forging production line with CNC forging hammer, pneumatic forging hammer, screw press etc. It can be achieved automatic roll forging production.Together with mechanical arm or automatic device. It is widely used in automobile,tractor, energy, hand tool etc.As the speed of roll forging is very fast, the pre-forging and final forging can be finishedin one time. High production efficiency, low noise and vibration.

Product Features

Item Unit ZGD370 ZGD460 ZGD560 ZGD680 ZGD1000 ZGD1250
Outer diameter of rolling die mm 370 460 560 680 1000 1250
Width in commission for rolling mm 500 570 700 850 1200 1400
Max. length of work-pieoe mm 570 710 870 1050 1920 2500
Adjustment of center distance mm 15 17 20 20 25 20
Rotaing speed of roller r.p .m 62 56 52 40/25 15/30 8
Max . blank
dimension
Square mm 50 65 90 110 140 180
Round mm Φ55 Φ75 Φ100 Φ125 Φ160 Φ200
Longitudinal stroke of mm 490 630 758 depend on depend on depend on
transfer arm manipulator manipulator manipulator
Lateal stoke of arm mm 436 505 550 750 920 1420
Vertical and horizontal adjustability mm Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable
Adjustment of longitudinal mm 200 200 400 Unadjustable Unadjustable Unadjustable
position
Single lateral stroke mm Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable
Max.load capacity kg 12 12 30 50 150 250
Main motor power kW 18.5 22 55 132 250 355
Total weight ton 10 12.5 22 60 70 120
