AFP Series Key Drive
AFP Series Key Drive

AFP Series Key Drive

Introduction

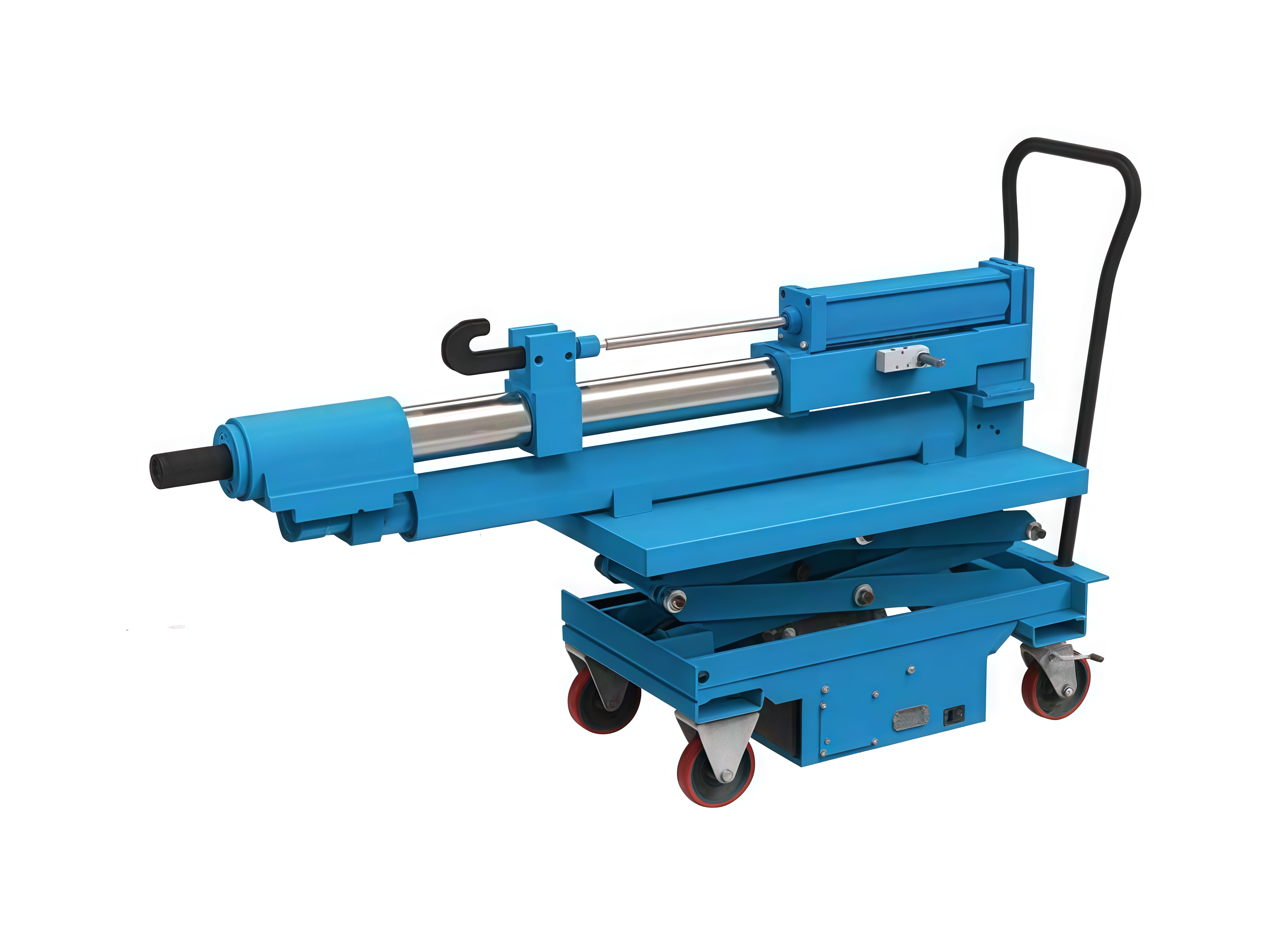

This Key Driver is suitable for install and remove wedges of forging hammer dies. Traditional wedge driving uses a driving swing to complete the work, which is very dangerous and poses a high safety risk. There is also heavy-duty Key Driver that requires the assistance of a forklift,occupies unnecessary space and equipment. This new type Key Driver only needs its own lifting trolley to complete movement and positioning. It is easy to operate, does not occupy space, and is highly safe.

Product Features

Product parameters

Item Unit AFP-DX1 AFP-DX3 AFP-DX5
Suitable equipment ton 1 3 5
Working pressure MPa 0.6-0.7 0.6-0.7 0.6-0.7
Single air consumption L 4.2 5.5 6.7
Lifting height (can be customized) mm 500-1000 500-1000 700-1500
Machine size mm 1800 * 650 * 700 1900 * 700 * 700 2100 * 800 * 700
Drive mode / Compressed air Compressed air Compressed air
Movement method / Hydraulic lift trolley/ bridge crane Hydraulic lift trolley/ bridge crane Hydraulic lift trolley/ bridge crane
