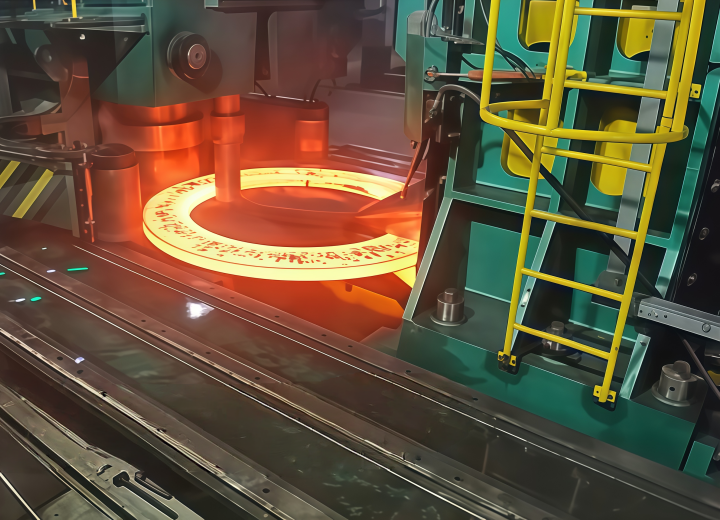

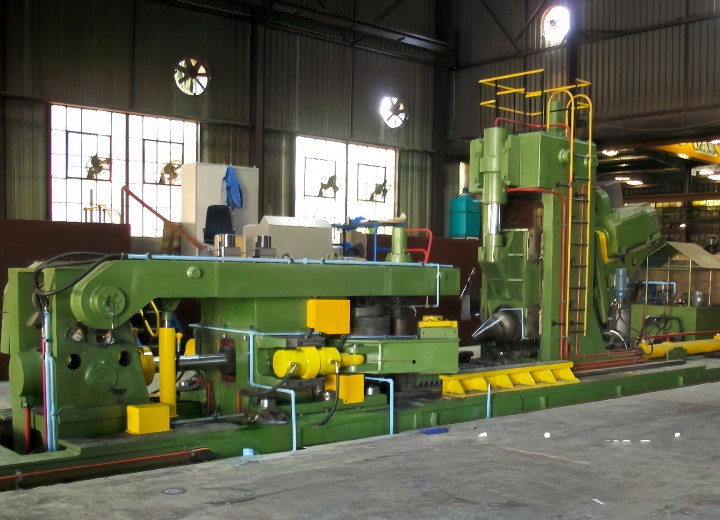

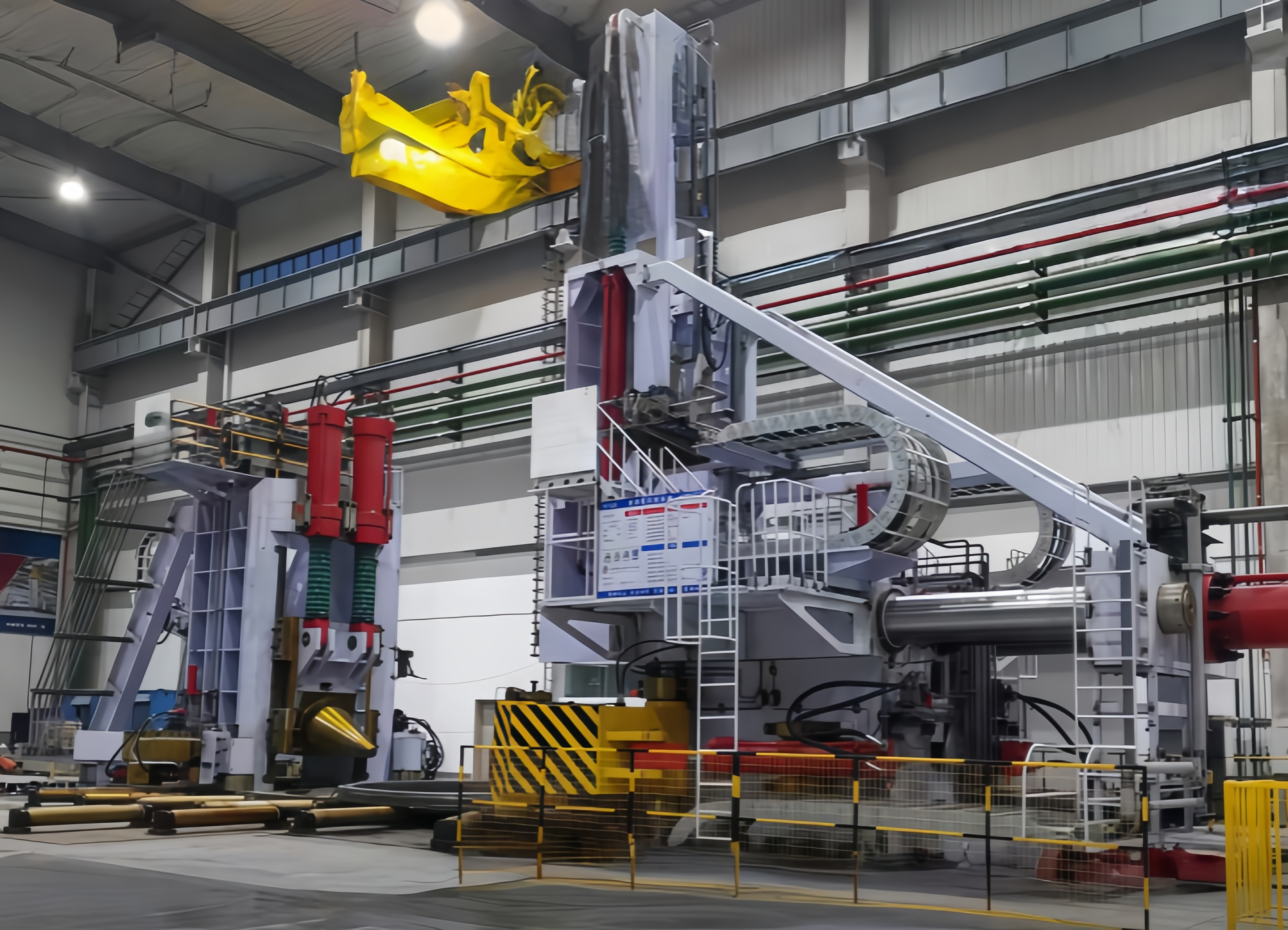

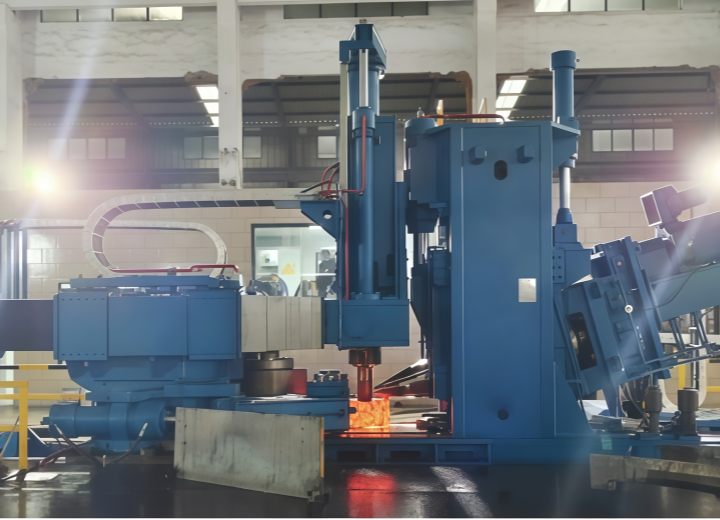

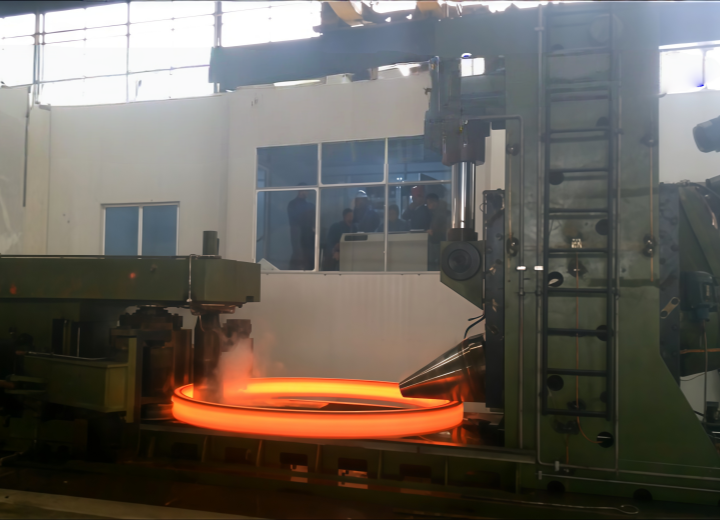

D53K series radial and axial ring rolling machine is adopted CNC technology to roll the ring from radial and axial together, it is used to produce large size rings, such as bearings, flanges and ball valves.

Send Email Inquiry Now

Product Features

Product parameters

Item Unit D53K-800 D53K-1600 D53K-2000 D53K-2500 D53K-4000 D53K-5000 D53K-6300 D53K-8000 D53K-9000 D53K-10000 D53K-12000
Radial rolling force kN 800 1250 1600 2000 2000 2500 4000 6000 8000 10000 16000
Axial rolling force kN 630 1000 1250 1250 1600 2000 3150 4000 5000 6300 8000
Taper roller angle ° 30 40 30 35 35 30 30 30 30 30 30
Rolling line speed m/s 1.5
Radial motor power kW 200 280 2×200 2×250 2×315 2×400 2×500 2×690 2×900 2×1250 2×2000
Axial motor power kW 2×110 2×160 2×200 2×220 2×315 2×400 2×500 2×600 2×800 2×1000 2×1300
Rolled ring OD mm 400-800 500-1600 600-2000 600-2500 700-4000 800-5000 900-6300 1000-8000 1100-9000 1250-10000 1500-12000
Taper roller distance mm 50-400 60-500 80-550 80-550 80-650 90-800 100-1000 110-1350 110-1600 120-1800 130-2000
Max. rolled ring height mm 300 400 450 500 500 650 900 1200 1450 1650 2000
Max. blank thickness mm 180 200 350 300 400 500 700 800 850 1000 1200
Max. finished thickness mm 110 120 200 150 220 300 420 480 530 600 700
Machine length mm 10500 11000 13500 14500 19000 21000 25000 32000 36000 40000 47000
Machine width mm 2300 2500 2400 3500 3500 4500 5800 6500 7500 8000 10000
Height above floor mm 3500 4300 5200 5000 5500 6200 7200 9400 10000 10500 11500

*Note:Above parameters are standard parameters and no announce if there are any changes.
